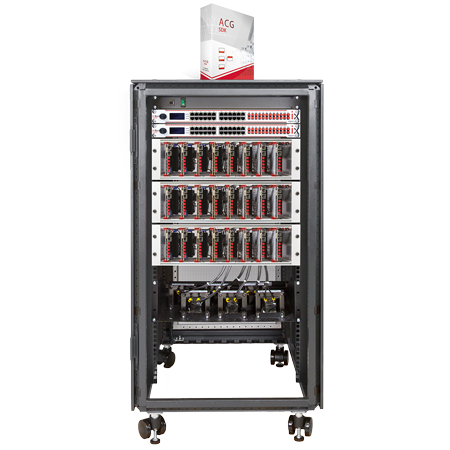

Content view of the Modular Multilevel Converter development bundle, with the digital controller as well as 24 submodules (half-bridge or full-bridge)

Lite MMC bundle

USD 81'531

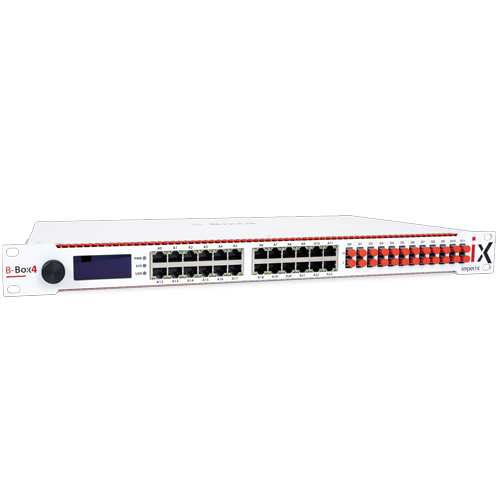

Side view of the B-Box RCP, showing the front panel, the analog inputs as well as optical fiber outputs (PWM signals)

B-Box RCP × 3

USD 13'614 / pc.

ACG_SDK

USD 7'436

empty 3U TYPE B × 3

USD 1'258 / pc.

PEH2015 × 24

Semi-industrial half-bridge Silicon carbide modules made for efficient converters

USD 1'098 / pc.

Inductors

6x2.5mH

Grid side panel

USD 1'945
Plug-&-play voltage sensor for mounting on a 35mm DIN rail

Voltage sensor × 4

USD 206 / pc.

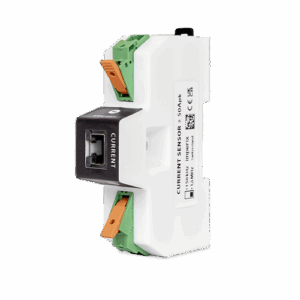

Plug-&-play current sensor for mounting on a 35mm DIN rail

Current sensor × 6

USD 206 / pc.

RJ45 cable × 34

USD 8 / pc.

Fiberoptic cable × 48

USD 10 / pc.

SMA to BNC cable × 4

USD 42 / pc.

Varistar cabinet

24U-800

SFP 10G cable × 2

USD 59 / pc.

Service (Technician) × 12

USD 149 / pc.
Category:

Additional information

PEH2015

Topology

Half-bridge

Current

24A RMS

Voltage

800V DC

Inductors

Variant

6×2.5mH

Grid side panel

Voltage

230VAC, 110VAC

Varistar cabinet

Size

24U-800
