Power converter kits

FOR TEACHING AND RESEARCH

Our modular power electronic solutions are available in several pre-configured kits and bundles, enabling engineering to start working as soon as products are delivered.

All kits and bundles shall be considered as configuration examples, which can be fully customized as a function of project requirements.

The true plug-&-play compatibility between the B-Box RCP and the power modules allows saving a lot of time during the prototyping phase !

Teaching kits

Basic configurations for a quick start

In addition to our rapid control prototyping controller and its software, the kits contain several power converter modules and sensors. They allow building various topologies and reconfiguring the power converters at wish.

The kits are based on rack-mountable open chassis, facilitating the (re)arrangement of power modules. They however don’t possess the same protections or connectivity as their fully-enclosed counterparts.

These kits are ideal when maximum flexibility on the topology is needed. Indeed, converters can be easily assembled (and de-assembled!) by simply placing modules in and out of an open chassis. This allows for a high reusability of the modules.

OTHER ENCLOSURES

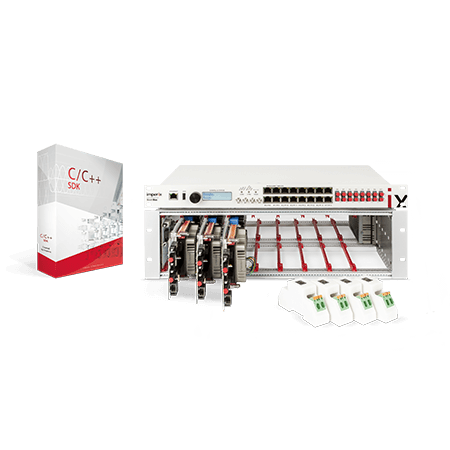

STARTER KIT


	your price
Quantity

Kit content

Programmable controller (B-Box RCP)
C/C++ developement tools (CPP SDK)
3x phase-leg modules (PEB8038)
4x voltage sensors
All needed cables

OPTIONS

Automated code generation tools from Simulink and PLECS (ACG SDK)
Different power modules

APPLICATION EXAMPLES

Buck/boost power converter(s)
Three-phase rectifier and inverter
(DC/AC or AC/DC converters)
Interleaved DC/DC converter
Single-phase inverter with PFC
Three-phase electric motor drive

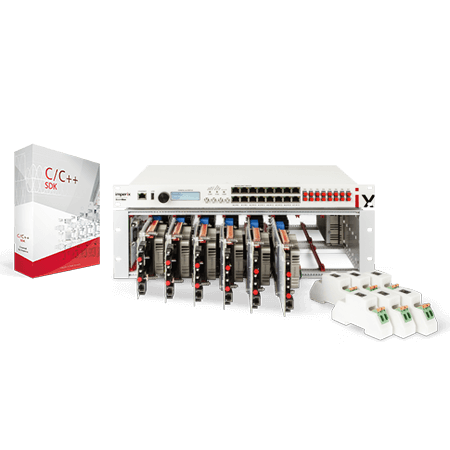

LITE KIT


	your price
Quantity

Kit content

Programmable controller (B-Box RCP)
C/C++ development tools (CPP SDK)

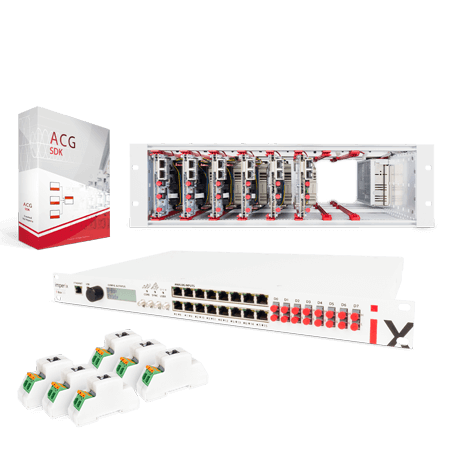

6x phase-leg modules (PEB8038)
6x voltage sensors
All needed cables

OPTIONS

Automated code generation tools from Simulink and PLECS (ACG SDK).
Different power inverter modules

APPLICATION EXAMPLES

All the examples from the starter kit, plus:

Back-to-back motor drive (e.g. PMSM)
Electric drive for DFIG generator
Static frequency converter
Multi-phase electric motor drive
Parallel inverters system

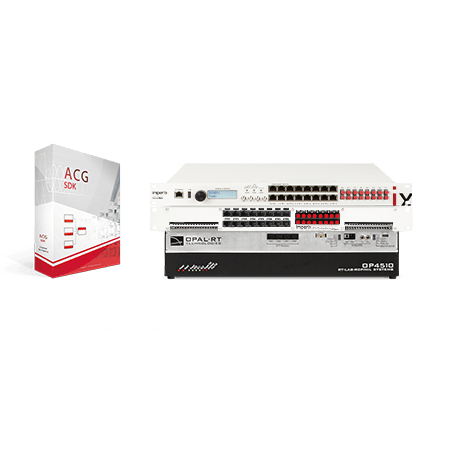

HIL KIT


	your price
Quantity

Kit content

Programmable controller (B-Box RCP)
Control development tools for Simulink and PLECS (ACG SDK)
Hardware interface for Opal-RT simulators
Opal-RT OP4512 (third-party product)

OPTIONS

C/C++ code development environment (CPP SDK)
Another HIL simulator (see interfaces)

APPLICATION EXAMPLES

All the examples from the lite kit, plus:

Photovoltaic (PV) inverter(s)
Complete wind turbine
Energy storage system (with BMS)
eV drivetrain or charging station
Microgrid inverter(s)

Research bundles

Ready-to-use and configurable power converter test benches

These bundles offer turn-key solutions for research applications, supporting the rapid prototyping of even the most advanced converter control algorithms. They guarantee a neat – and safe – implementation of numerous applications, with no sacrifices on flexibility. Bundles are furthermore customizable so that they can be adapted to specific needs.

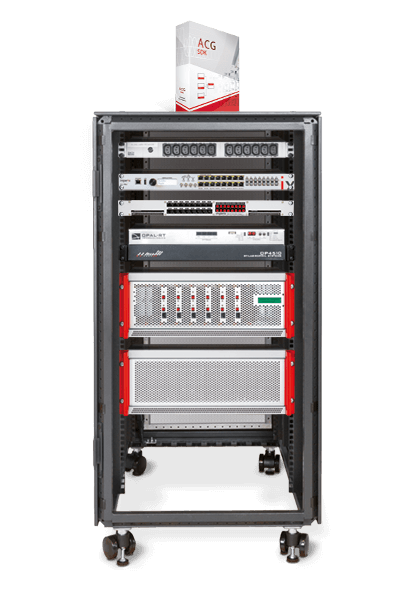

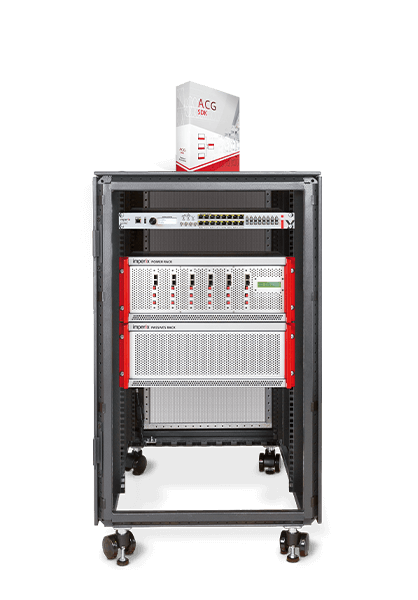

POWER ELECTRONICS BUNDLE


	your price
Quantity

Kit content

OPTIONS

Automated code generation tools from Simulink and PLECS (ACG SDK)

VARIANTS

Phase-leg modules (PEB4050) for 110VAC operation
Fast-switching modules (PEB8024) for up to 200 kHz switching frequency

The power electronics bundle is a general purpose test bench. It includes a programmable controller and a selection of half-bridge power modules, LC filters, and sensors to build various topologies.

Phase-leg modules, inductors, and capacitors are safely enclosed in racks to prevent access to live parts. Nevertheless, all power terminals are individually accessible through standard 4mm safety connectors. For this reason, rewiring the topology of the system is simple.

Unlike the teaching kits, the equipment is rack-mounted in a cabinet with wheels. Thus, it can be easily moved around in a laboratory. The extra space at the bottom of the cabinet provides flexibility for the future and allows mounting more equipment if needed.

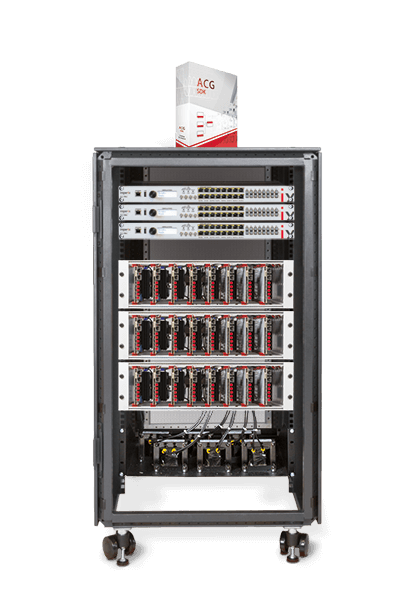

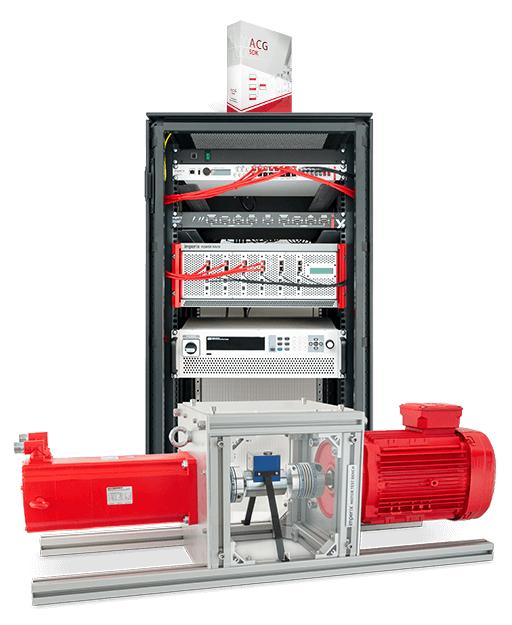

ELECTRIC MOTOR DRIVE BUNDLE
