B-Box RCP 3.0

Rapid control prototyping for power electronics

The ultimate DSP+FPGA digital controller for power electronics

The B-Box is a rapid control prototyping (RCP) system for power electronic applications. Thanks to the high flexibility of its software and hardware, it facilitates the experimental validation of power converters control techniques.

The system is fully programmable, including both its DSP and FPGA, so that even the most advanced control algorithms can be effectively tested in a laboratory environment. The RCP target also supports real-time monitoring and debugging.

your price

Upgrade kit

The kit allows transforming hardware from the previous generation (2.0) into the very same hardware as the B-Box RCP 3.0. The upgrade procedure implies replacing the motherboard – with its hosted processing module – as well as the rear panel. Updating the hardware is easy and can be done directly by the end-user, or at imperix (standard support request).

your price
$3’655.00


KIT COMPOSITION
  • Motherboard with B-Board PRO
  • Rear panel (pre-assembled)

Upgrade kit

The kit allows transforming an existing BoomBox (HW 2.0) into the very same hardware as the B-Box RCP 3.0. The upgrade procedure implies replacing the motherboard as well as the rear panel. Updating the hardware is easy and can be done directly by the end-user, or at imperix (standard support request).

your price
$3’655.00


KIT COMPOSITION
  • Motherboard with B-Board PRO
  • Rear panel (pre-assembled)

The control hardware is centered around a Xilinx Zynq 7030 SoC, with the fastest available speed grade. It features a dual-core ARM processor (DSP), clocked at 1 GHz.

Thanks to its Kintex-grade FPGA logic, the digital controller offers 32 PWM blocks, with a time resolution of 4 ns. This guarantees a duty-cycle resolution of 2 % at 5 MHz.

The power converter controller offers great flexibility for the most demanding applications, with an entirely configurable analog front-end and a large number of digital I/Os.

Connectivity for power electronics

The control of power converters always requires various types of sensors to be connected to the control hardware. The B-Box RCP facilitates rapid control prototyping applications with a tailored and highly configurable connectivity.

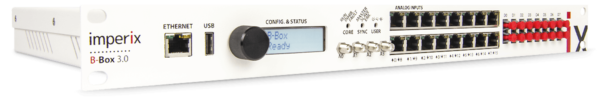

Front view
Rear view

Main DEVICE specifications

System on chip

Xilinx Zynq XC7Z030-3FBG676E

Digital outputs16x Electrical (3.3V/5.0V)
DSP / Processing cores2x ARM Cortex A9 1GHz
1GB DDR3
Digital inputs16x Electrical (3.3V/5.0V)
FPGAsXilinx Kintex 7 125K (user programmable)
Xilinx Artix 7 35T (auxiliary)
Fault inputs16x Electrical (3.3V)
1x Electrical interlock
1x Optical interlock
Analog inputs16x 16bits @ 500ksps
Simultaneous sampling
Programmable full-differential front-end
Incremental decoder inputs4x 3-pins (A,B,Z)
(shared with GPI inputs)
PWM outputs16x Optical
32x Electrical (3.3V)
Communication1x CAN
1x Ethernet 1 Gbps
3x SFP+ 5Gbps (RealSync)
User High-speed I/Os36x Electrical (3.3V)
System on chipXilinx Zynq XC7Z030-3FBG676E
DSP / Processor2x ARM Cortex A9 1GHz
1GB DDR3
FPGAsXilinx Kintex 7 125K (user programmable)
Xilinx Artix 7 35T (auxiliary)
Analog inputs16x 16bits @500ksps
Simultaneous sampling
Programmable full-differential front-end
PWM outputs16x Optical
32x Electrical (3.3V)
User High-speed I/Os36x Electrical (3.3V)
Digital outputs16x Electrical (3.3V/5.0V)
Digital inputs16x Electrical (3.3V/5.0V)
Fault inputs16x Electrical (3.3V)
1x Electrical interlock
1x Optical interlock
Encoder inputs4x 3-pins (A,B,Z) (shared with GPI inputs)
Communication1x CAN
1x Ethernet 1 Gbps
3x SFP+ 5Gbps (RealSync)
Switch from simulation to experimentation in no time!

The B-Box RCP can be programmed in one click, directly from Simulink. Besides,  everything can be accurately simulated first. This allows a truly simple and rapid switchover to lab activities.

Go early to the lab and work straight ahead with power!

With the hardware protections present with the control hardware, engineers can start testing early, saving valuable time on computer simulations and/or real time simulations.

Generate high quality and impactful experimental results!

Thanks to the data logger embedded directly inside in the programmable converter controller, every signal can be observed, tuned and logged during run time.

An advanced converter controller

The B-Box RCP real-time control target is able to support the implementation of the most advanced digital control techniques for power converters. This requires not only high-end performance but also a high level of flexibility and ease of use.

Integrated with Simulink and PLECS
Simulink

The B-Box RCP prototyping controller can be programmed using C/C++, or simulation software such as Simulink or PLECS. Thanks to our fully-automated code generation toolchain, just one single click is needed to fully program the device!

The blocksets also embed simulation models so that the system can be accurately simulated and tuned before code is generated.

Absolutely no expertise in FPGA-based development is needed to work with the B-Box RCP. It operates readily with a flexible and highly configurable FPGA firmware.

Nevertheless, for the advanced users who require rapid control prototyping to involve custom FPGA code, the RCP target allows doing so. Dedicated FPGA areas are provided, with straightforward integration with DSP software.

FPGA
User-programmable FPGA
High processing power
Simulink

The B-Box RCP uses a dual-core processor (Xilinx Zynq). One core is dedicated to the real-time control tasks (bare metal, dedicated kernel), the other one to the system supervision and monitoring (Linux). Most low-level tasks are also shifted in FPGA.

This results in the full dedication of a fast floating-point processor (DSP) to power converter control purposes, with tremendous performance, ranging up to 400 kHz control frequencies in closed-loop operation.

When the number of I/Os provided by one RCP control target turns out to be insufficient, several units can be stacked together, up to a maximum of 64 units (1024 analog inputs and 2048 PWM outputs).

In stacked configurations, all units are naturally synchronized with an accuracy of ±2 ns (!) thanks to imperix’s RealSync technology. This allows using all I/Os as if they simply belonged to the same controller hardware!

FPGA
Stackable design
Hardware-level protection
Simulink

In case of inappropriate operation, the converter controller instantly blocks its PWM signals, thanks to dedicated hardware protection circuits. This guarantees a high level of protection, entirely independently from both the DSP cores and the FPGA.

The B-Box RCP is also self-protected against inappropriate conditions such as excessive computational burden or algorithmic errors.

Each rapid prototyping controller possesses 16 highly configurable analog input channels. This obviates the need to repeatedly develop signal conditioning interfaces for every project. Each input channel features:

  • 3kΩ differential voltage input or 100Ω single-ended current-type input.
  • Programmable safety thresholds.
  • Programmable gain amplifier and low-pass filter
FPGA
Highly flexible analog front-end

Features and BENEFITS

Integrated with Simulink and PLECS
The B-Box RCP can be programmed using C/C++ code, or widespread simulation software, such as Matlab Simulink or Plexim PLECS. Thanks to a fully automated code generation toolchain, just one single click is all it needs to fully program the device!

The blocksets also embed simulation models so that the system can be accurately simulated and tuned before code is generated.

User-programmable FPGA
Absolutely no expertise in FPGA-based development is needed to work with the B-Box RCP, as it operates readily with a highly flexible and highly configurable FPGA firmware.

Nevertheless, for the most advanced users who require to alter the FPGA code, the B-Box RCP allows doing so. Dedicated FPGA areas are provided, with straightforward integration within the existing DSP software kernel.

High processing power

The B-Box RCP uses a dual-core processor (DSP) ; one core being dedicated to the execution of the closed-loop control tasks (bare metal, dedicated kernel), the other to the system supervision and monitoring (linux). Besides, most low-level tasks are shifted in FPGA.

This results in the full dedication of a fast floating-point processor core to real time control tasks, with best-in-class performance, ranging up to 200 kHz control frequencies.

Stackable design

When the number of I/Os provided by one B-Box RCP unit turns out to be insufficient, several units can be stacked together and linked with 5 Gbps optical fibers, up to a maximum of 64 B-Boxes. This results in a maximum of 1024 analog inputs and 2048 PWM outputs.

In stacked configurations, all units are naturally synchronized with an accuracy of ±2 ns (!) thanks to imperix’s patent-pending RealSync technology. This allows to use all I/Os as if they simply belonged to the same controller hardware.

Hardware-level protection
In case of inappropriate operation, the B-Box instantly blocks its PWM signals, thanks to dedicated hardware protection circuits. This guarantees a high level of protection, entirely independently from both the DSP cores and the FPGA.

The BoomBox is also self-protected against inappropriate conditions such as excessive computational burden or critical algorithmic errors.

Highly flexible front-end

Each B-Box possesses 16 highly configurable analog input channels. This obviates the need to repeatedly develop signal conditioning interfaces for each prototyping project. Each input channel features:

  • 3kΩ full-differential voltage input or 100Ω single-ended current-type input.
  • Programmable safety thresholds.
  • Programmable gain amplifier and low-pass filter

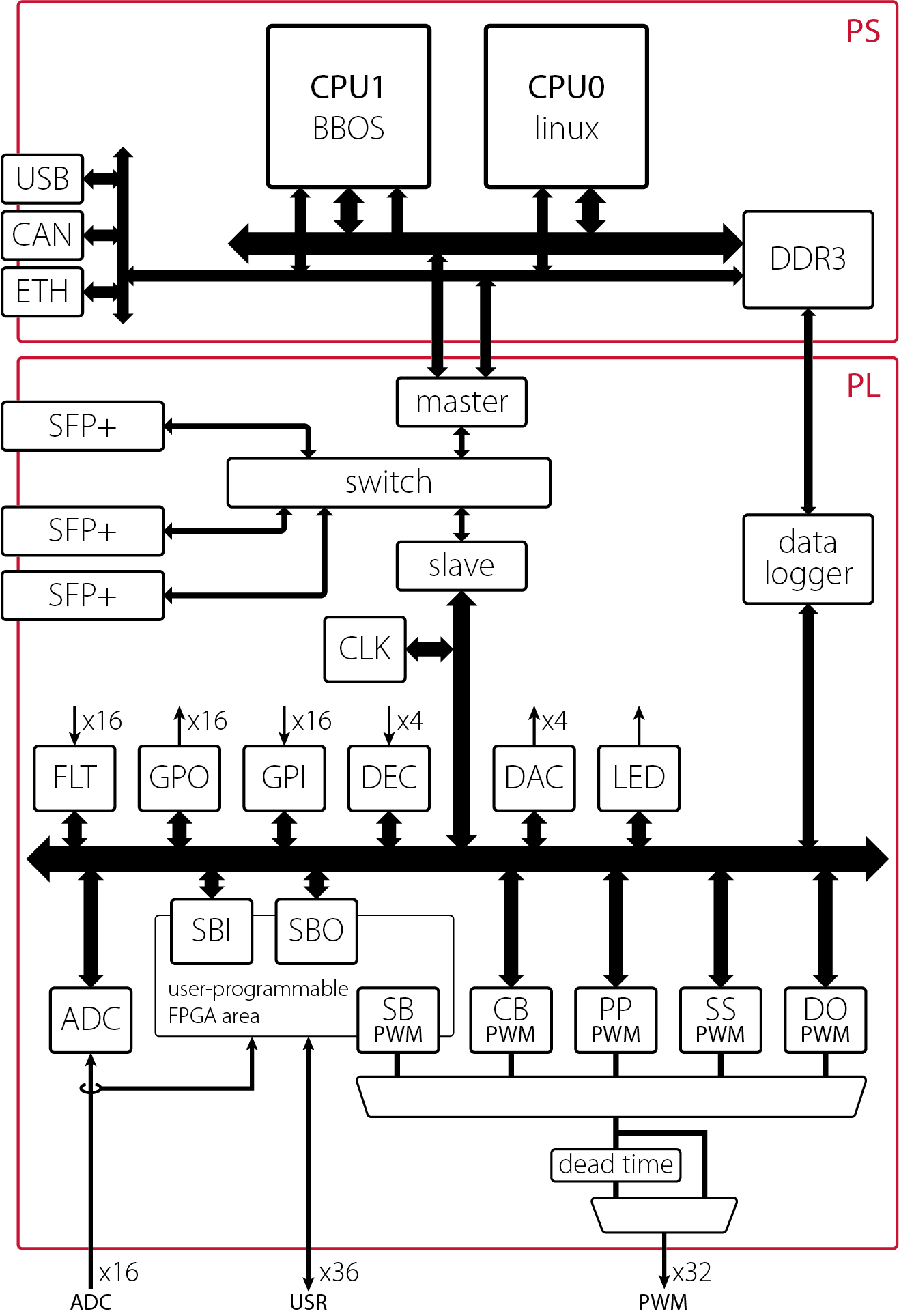

A fully-programmable prototyping controller

Rapid control prototyping with both DSP + FPGA

Each unit features no less than two FPGAs (1 user-programmable) and one dual-core processor (1 user-programmable) for state-of-the-art real-time control performance and maximum ease of use!
DSP programming
  • Simulink and PLECS
  • C/C++
FPGA programming
  • VHDL, Verilog
  • High-level synthesis

B-Board PRO inside!

A high-performance embeddable controller at the heart of each real-time control target

The B-Board PRO control module is used as the main processing system inside the B-Box RCP.

This guarantees consistent behavior and performance between both platforms, enabling users to switch seamlessly between them, with full bitfile compatibility.

A high-end interconnect

Multiple RCP controllers can be interconnected using optical fibers (SFP). In this case, the I/O capabilities of the so-constituted RCP control target can be vastly augmented, as well as its processing power.

Perfect synchronization!

Imperix’s patent-pending RealSync technology guarantees an unrivaled synchronization accuracy across multiple units, down to ±2.0 ns!

All this is achieved through advanced clock dissemination inside the optical fibers, enabling multiple B-Boxes to operate as if they were one single unit!

High-speed communication

The same 5 Gbps SFP+ links can be configured in a tree-shaped network, achieving superior data bandwidth and lower latency over daisy-chain or ring topologies. This guarantees sub-microsecond data transfers in configurations with up to 8 programmable RCP controllers!

Inter-devices communication can be used to build larger programmable targets or in-between multiple converter controllers.

A tailor-made kernel

The B-Box RCP embeds an ultra-light operating system, specially tailored for hard real-time operation, as in power electronics. This kernel simultaneously combines a high level of safety and very low overhead.

More importantly, thanks to its fully FPGA-based peripherals, the RCP controller is built on a strong hardware abstraction layer. As such, any control code is guaranteed to keep working across future generations of hardware, facilitating system maintenance and upgrade.

A nice benefit of this approach is also that B-Box RCP and B-Board PRO are fully cross-compatible, although the underlying hardware differs. This allows users to switch from one control hardware to the other very easily.

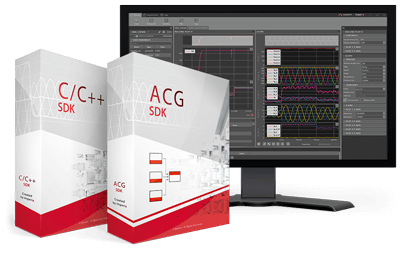

Comprehensive computer software

Comprehensive design suites

Rapid control prototyping with our programmable controllers is supported by our software development kits (SDK), for either C++, Simulink or PLECS .

  • Support for C++, Simulink or PLECS
  • Code libraries / examples
  • Free maintenance
Monitoring & control software

During operation, the BB Control Utility  allows to observe, edit and log any variable present in memory. This allows for the rapid debugging and tuning of any converter control code.

  • Real-time tuning of all variables
  • 2 million points datalogging
  • Free maintenance
