Imperix

Power electronics

imperix is a technology provider of advanced power conversion solutions

Imperix develops high-end control equipment and prototyping hardware for power electronics, drives, smart grids and related topics.

Our products are designed to accelerate the implementation of laboratory-scale power converters and facilitate the derivation of high-quality experimental results.

We also offers various levels of integration services, ranging from the delivery of plug-and-play hardware and software, to that of fully customized systems.

Power converter CONTROLLERS

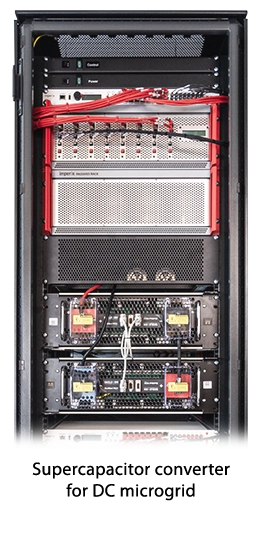

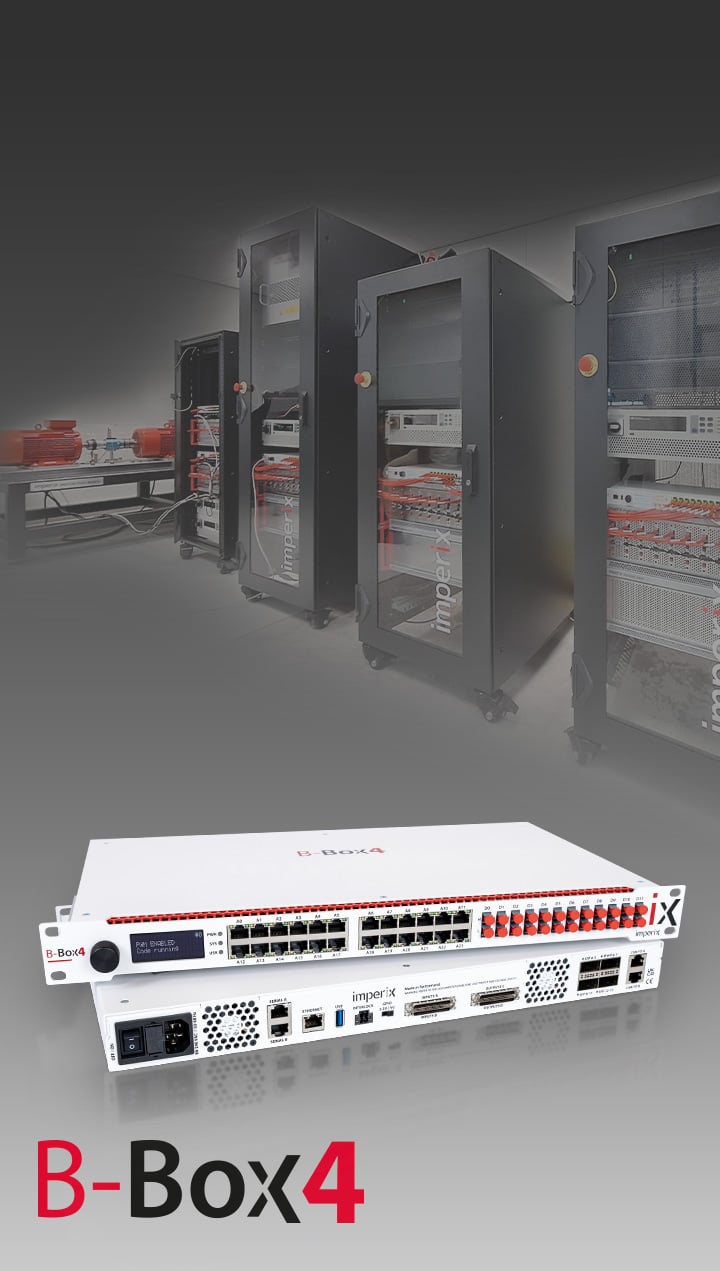

The B-Box RCP is a high-performance controller dedicated to power converters. Specially engineered for rapid prototyping applications, it distinguishes by its hardware and software configurability. Simultaneously, the B-Box RCP also guarantees an easy use and programming.

The B-Board PRO is the heart of the B-Box RCP controller. It is also available as a standalone product for embedded applications. The board feature a ZynQ-based dual-core ARM processor and a Kintex-grade FPGA, plus advanced communication capabilities and extensive I/Os.

Power modules

Imperix power modules are ready-to-use building blocks allowing to build up almost any converter topology. They exist in various power ratings and internal structures. Each module features:

  • Power semiconductors and gate drivers
  • Voltage and current sensors, with local protections
  • Cooling

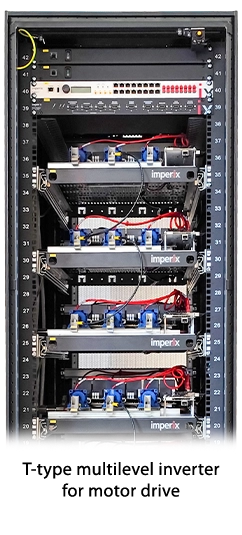

Modules can be integrated within rack-mountable chassis and enclosures. Additional passive filtering elements are also available.

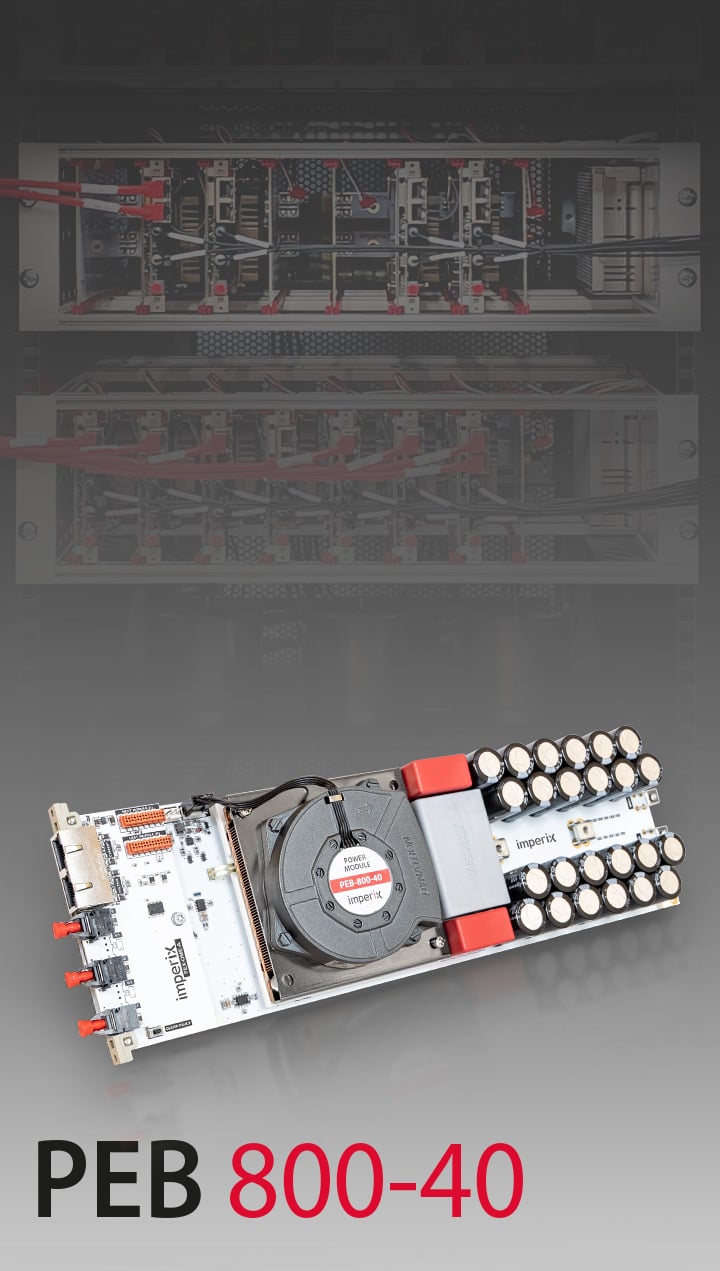

PEB8032 / PEB4046
  • 800 V / 32 A phase-leg
  • 400 V / 46 A phase-leg
PEB8024
  • 800 V / 24 A phase-leg (SiC)
PEH2015 / PEH4010
  • 200 V / 15 A full-bridge
  • 400 V / 10 A full-bridge
PEN8018
  • 800 V / 18 A NPC 3-level

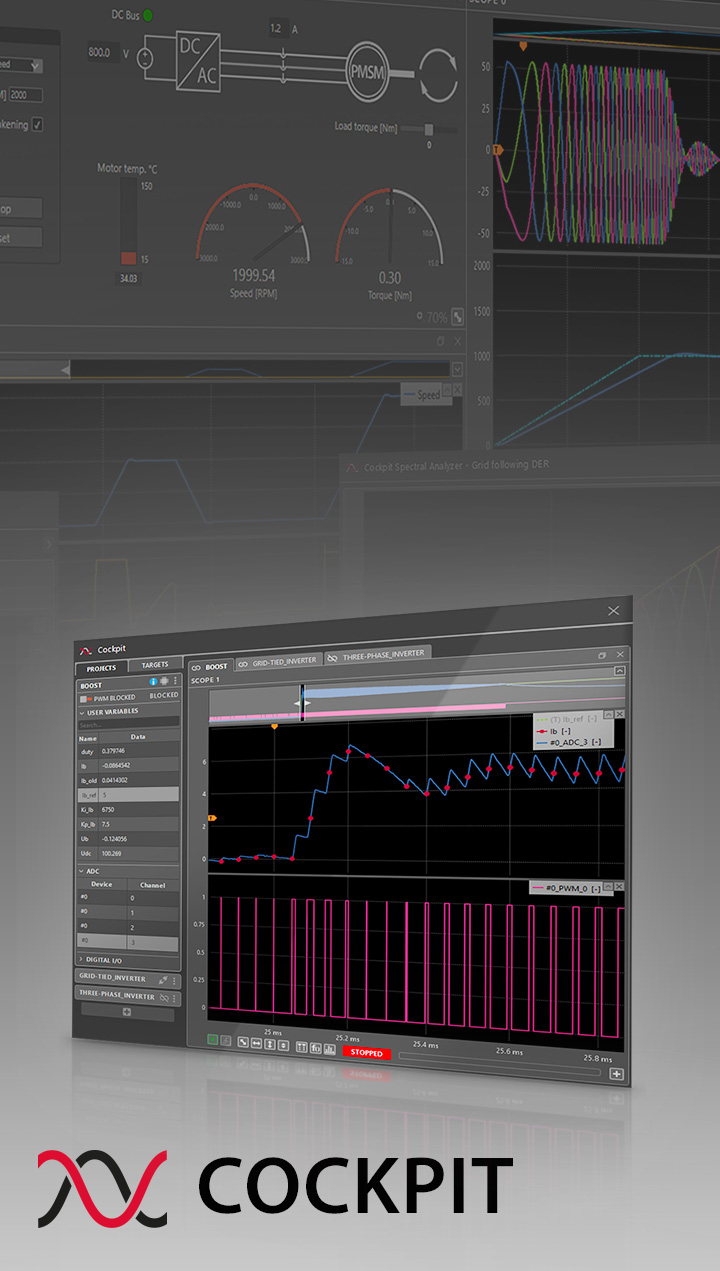

Software solutions

Easy programming

Imperix provides two Software Development Kits (SDK), dedicated to either graphical or C/C++ programming. Engineers are thus free to chose between the automated generation of code – from Simulink or PLECS – or the superior flexibility and performance of hard coding:

  • CPP SDK – support for C/C++ development
  • ACG SDK – support for Simulink and PLECS
CPP SDK

The C/C++ programming SDK provides everything engineers need to program the B-Box RCP or B-Board PRO in a straightforward manner from the imperix IDE. For advanced users and complex projects, C/C++ is a must, thanks to its superior flexibility and performance over the ACG SDK.

ACG SDK

The Automated Code Generation (ACG) SDK allows the generation of code and the programming of B-Box RCP or B-Board PRO directly from Simulink or PLECS, which is achieved in only one click! This also enables realistic PC-based simulation the complete application before the actual programming.

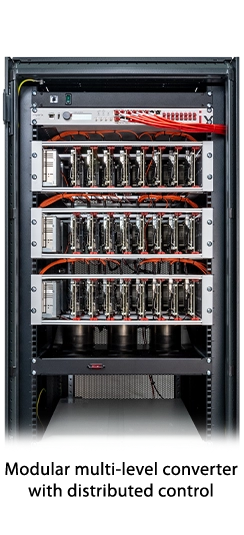

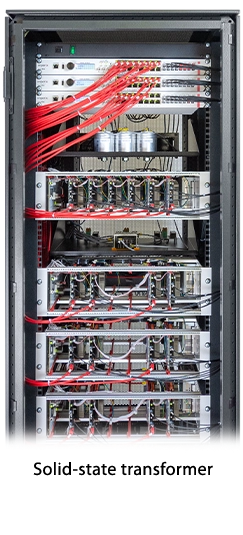

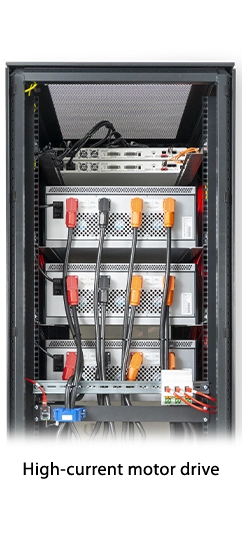

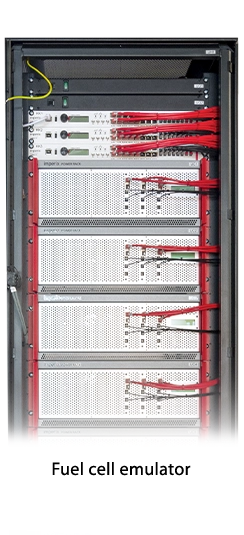

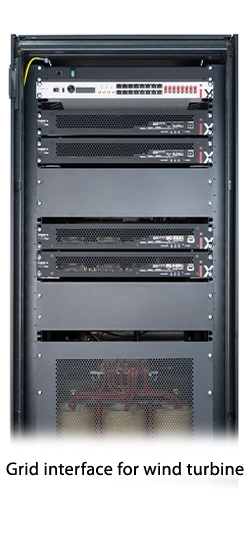

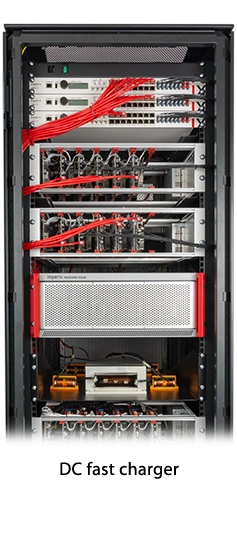

Use case examples

Imperix provides tailored solutions for all sorts of rapid control prototyping activities in power electronics. Our products enable engineers to work faster by saving time on their own development efforts.

TEACHING

Thanks to their modular nature, imperix products are ideally suited for teaching applications. They indeed possess all the features – ranging from ease-of-use to robustness – to be safely put in the hands of students.

Imperix products offer a very flexible way to conduct laboratories or students projects at the graduate or undergraduate level.

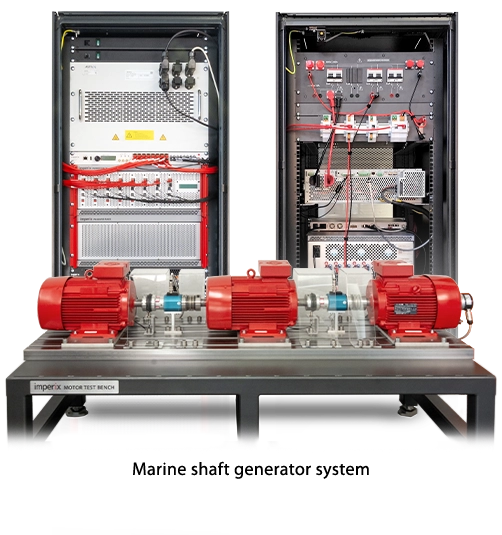

RESEARCH

Imperix offers scalable solutions for research in power electronics, allowing engineers to accelerate their prototyping activities, thanks to ready-to-use hardware solutions.

Imperix solutions allow to go early to the lab and challenge the converter control in a real-world environment!

INDUSTRY

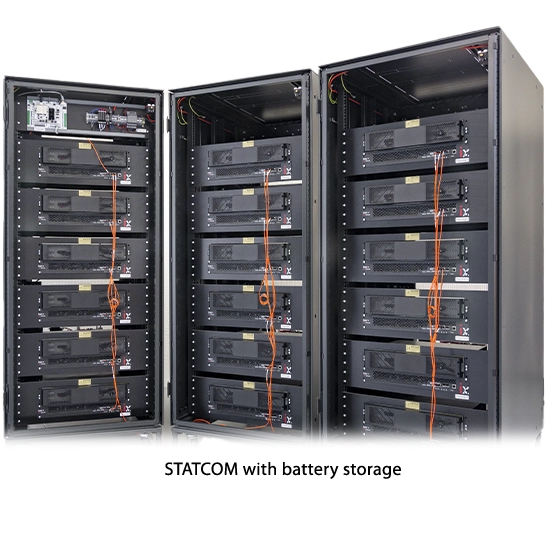

Imperix offers a complete family of control solutions, supporting the whole life cycle of power conversion systems, from R&D to commercial products.

These solutions alleviate the various challenges occurring in-between the different steps of the product design, contributing to significantly reduce the time to market as well as mitigate design risks.

TEACHING

Thanks to their modular nature, imperix products are ideally suited for teaching applications. They indeed possess all the features – ranging from ease-of-use to robustness – to be safely put in the hands of students.

Imperix products offer a very flexible way to conduct laboratories or students projects at the graduate or undergraduate level.

RESEARCH

Imperix offers scalable solutions for research in power electronics, allowing engineers to accelerate their prototyping activities, thanks to ready-to-use hardware solutions.

Imperix solutions allow to go early to the lab and challenge the converter control in a real-world environment!

INDUSTRY

Imperix offers a complete family of control solutions, supporting the whole life cycle of power conversion systems, from R&D to commercial products.

These solutions alleviate the various challenges occurring in-between the different steps of the product design, contributing to significantly reduce the time to market as well as mitigate design risks.
