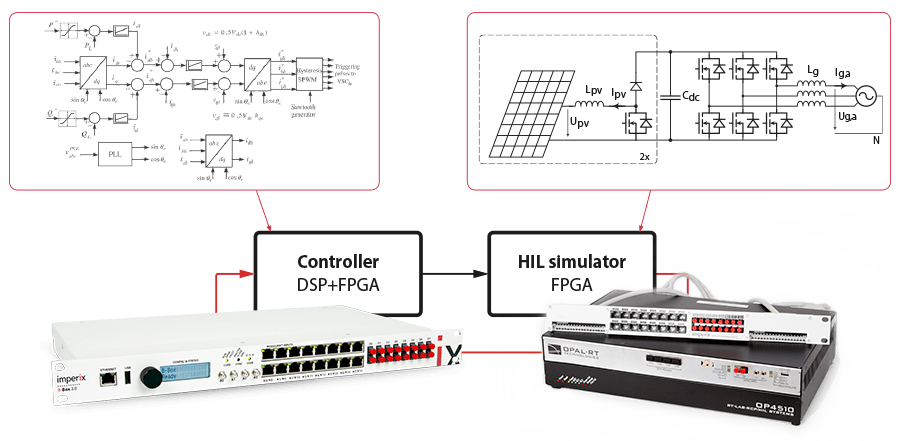

Hardware in the loop simulation system using the HIL simulation interface.

Benefits of Hardware-in-the-loop simulation:

  • Start control testing early, with real control hardware;
  • Pre-validate the control when the power stage is not (yet) available;
  • Conduct dangerous or potentially destructive tests;
  • Integrate external equipment (e.g. communication) into the test bench, from the start.

HIL simulation interfaces

Interfaces for real time simulation solutions

Imperix offers HIL simulation interfaces for the most well-known real-time simulators. Together with HIL simulation, they contribute to accelerating the control testing of power electronic converters.

For instance, by interfacing the real control equipment (hardware and software) with emulated power electronic circuits, engineers can easily debug and validate control algorithms, without necessarily building a downscaled system mockup.

Furthermore, when needed, power equipment may also be involved within the control loop(s), hence building so-called Power Hardware-in-the-loop (PHIL) configurations.

Real time simulation of power converters

Typical workflow

1 – Offline computer simulation

Both the control and the power stages are simulated on the computer, for instance using Simulink or PLECS. For imperix controllers, accurate models are part of the dedicated ACG SDK.

2 – Real-time HIL simulation

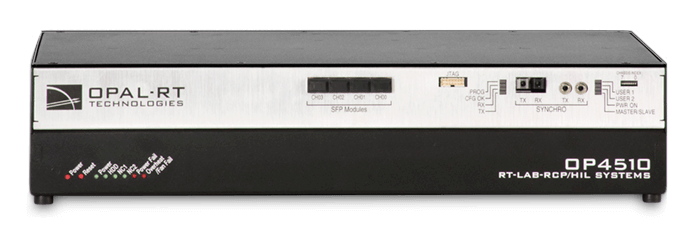

The capability to run simulation models in real-time enables engineers to make simulations interact with real-world equipment. For instance, the control software may be run on a B-Box RCP, while the plant model is run in real-time on the FPGA of an OP4510.

3 – Experimental validation

Eventually, complementary control validation can be obtained in the laboratory with the real system or a prototype. At this stage, electromagnetic compatibility or system efficiency can also be tested and validated.

HIL simulation hardware for teaching!

The B-Box RCP controller possesses the unique capability to protect power electronic equipment, thanks to ultra-fast hardware protections. However, operating power inverters with potentially dangerous voltages always remains not trivial with students or inexperienced staff.

In such a context, hardware in the loop testing with real-time simulation may be a good alternative to experimental activities. They offer a sufficient level of accuracy for control-related purposes, in a virtually harmless environment.

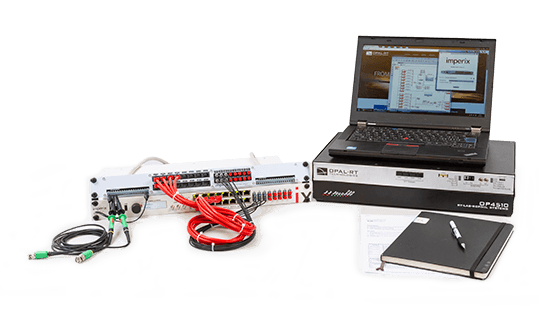

Desktop-based hardware in the loop simulation system.

Controller hardware in the loop (HIL)


HIL simulator interface for controller-HIL.

The simulator interface interconnects the B-Box RCP to a third-party HIL simulator.

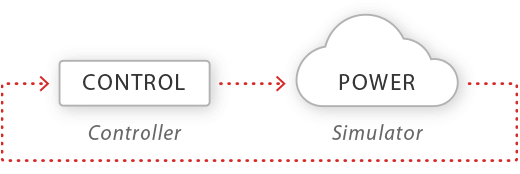

The so-called controller hardware-in-the-loop (or C-HIL) configuration combines the real control system with a simulated power converter. This configuration is often used for control testing before the power stage (or a reduced-scale prototype) is available.

In general, one HIL simulation interface is sufficient, but several units can also be used when numerous I/O signals are needed.

DSP+FPGA controller for power converters

The imperix B-Box RCP is a real-time controller that is dedicated to the control of power electronic systems. Its hardware makes it tailored for rapid control implementation in laboratory environments but the unit is also perfectly suitable for industrial use as well.

High-fidelity hardware-In-the-Loop simulator

By connecting the B-Box RCP to a real-time simulator, engineers can emulate the power inverter (or any other converter topology) instead of implementing a downscaled version. This can accelerate and facilitate the inverter control testing.

HIL Simulation interfaces for third-party simulators

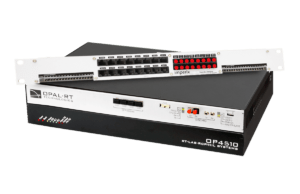

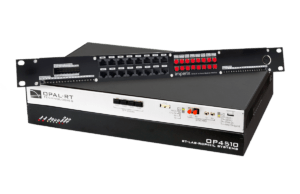

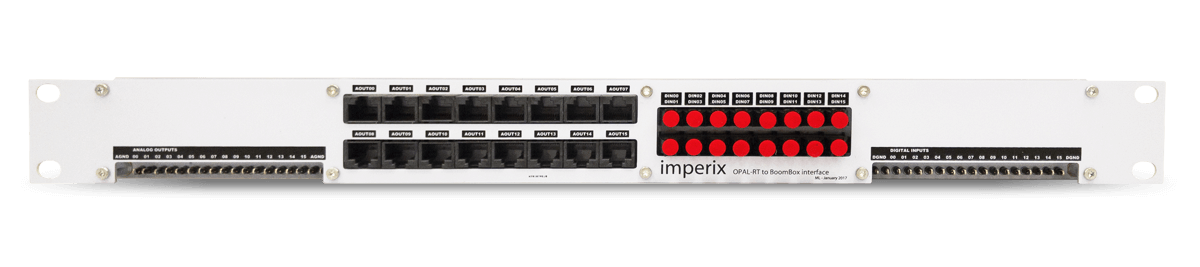

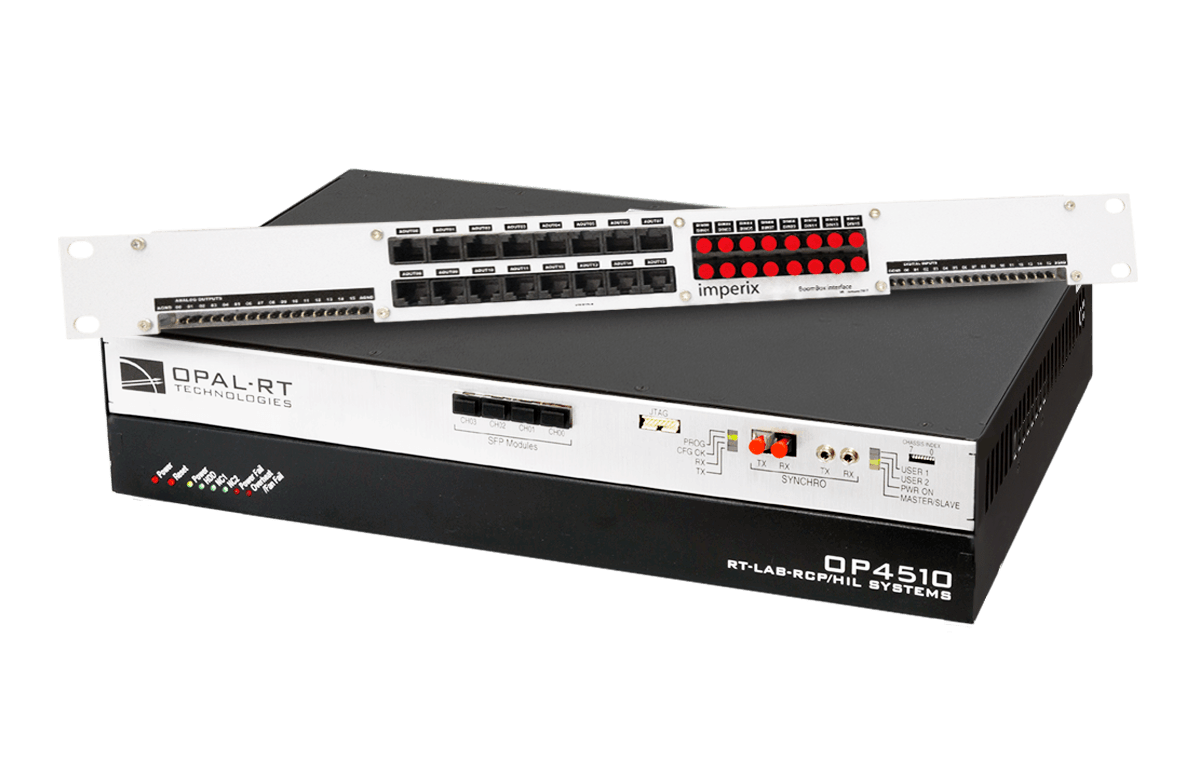

HIL simulator interface for Opal-RT
For Opal-RT
your price

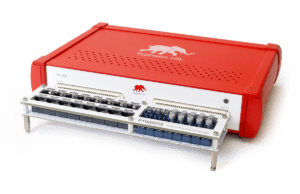

HIL simulator interface for Typhoon HIL.
your price

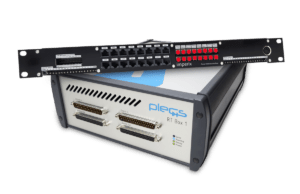

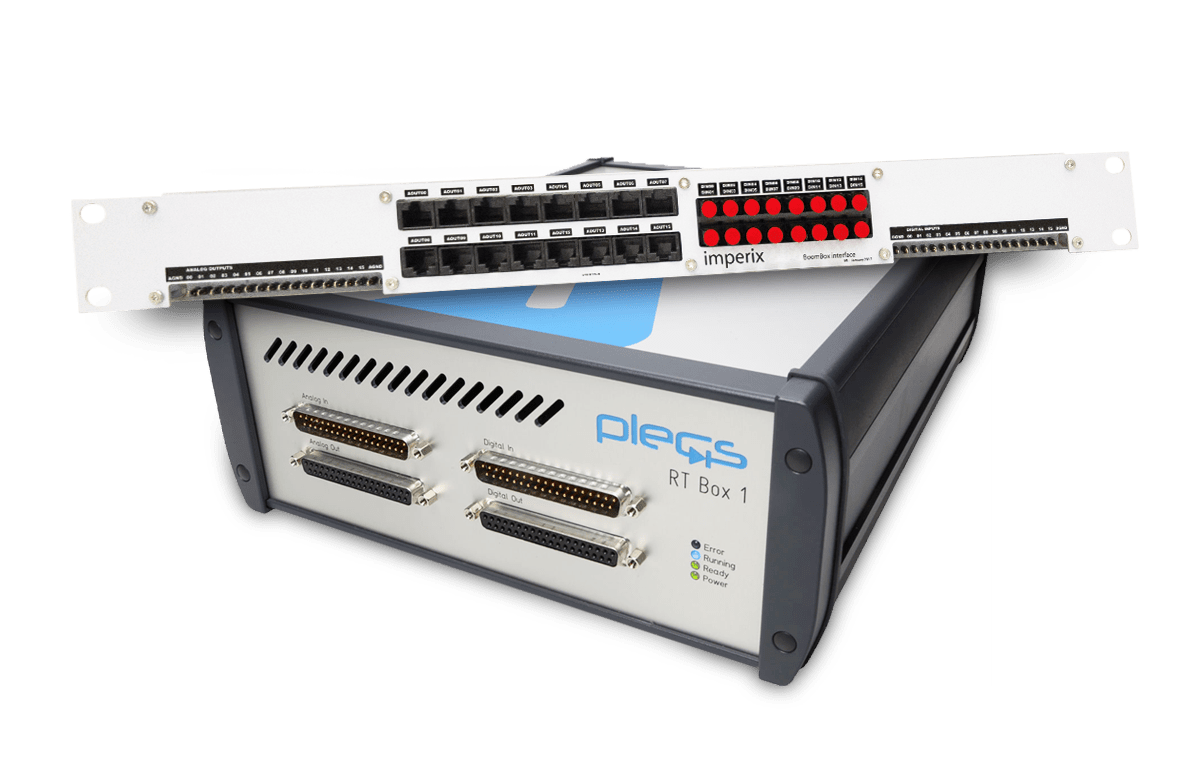

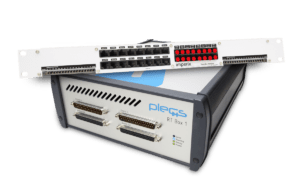

HIL simulator interface for Plexim RT-Box 1.
your price

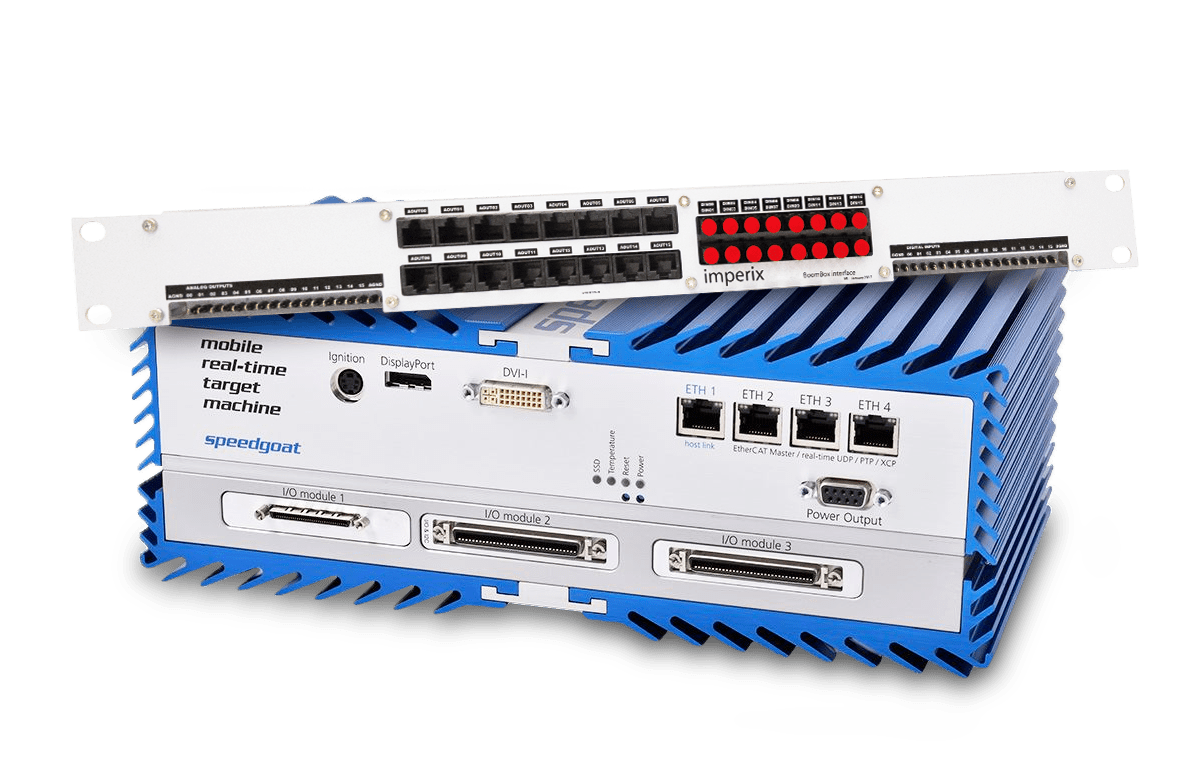

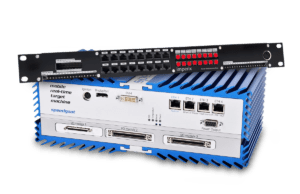

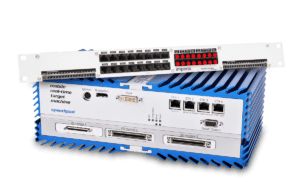

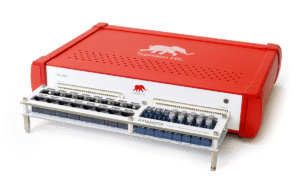

HIL simulator interface for Speegoat.
your price

Power electronic test-bench

Microgrid inverter simulation and testing

Power electronic test bench containing an HIL simulation interface.

Imperix and Opal-RT joint design

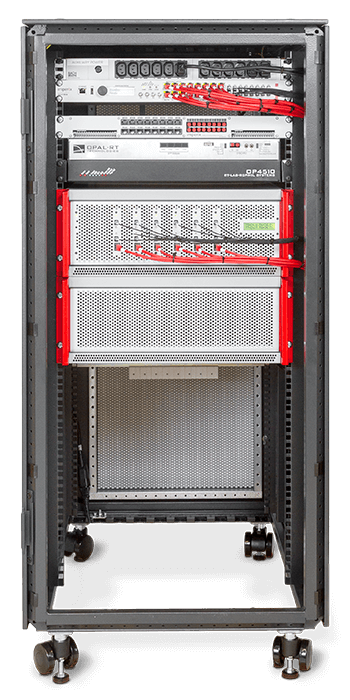

Ready-to-use products bundle

Imperix and Opal-RT have developed a ready-to-use system, which combines equipment from both companies. This product bundle offers both HIL simulation hardware and low-voltage prototyping equipment in a single system.

Users only need to swap cables from the HIL simulation interface to the power stage to start experimenting with real power inside their laboratory.

Get confidence
with your models

By working iteratively between real-time simulation and experimental research, the validation of the system model(s) can be made in a straightforward manner.

Get results
from the laboratory

Journal publications often require experimental results, which can be a tedious task. With this test-bench, most challenges can be solved using HIL simulation, making the experimental part faster and easier afterwards.

Three-phase PV inverter example

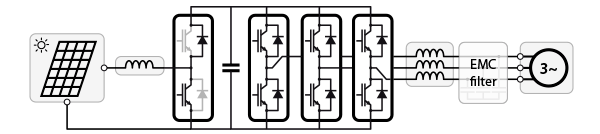

Electrical schematic of a photovoltaic inverter for microgrids.
Work with a simulated panel to easily control irradiance conditions!
Work with a real PV panel and improve the realism of your setup!
Simulate unbalanced or faulty grid conditions!
Measure real power flows and evaluate efficiency!

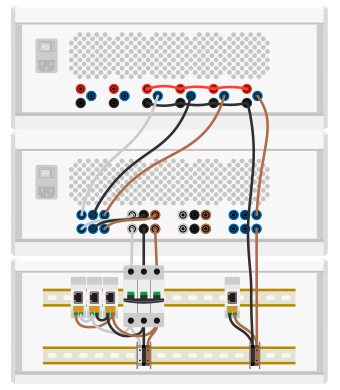

Wiring example of the power electronic test bench for a PV inverter.

Power hardware in the loop (PHIL)

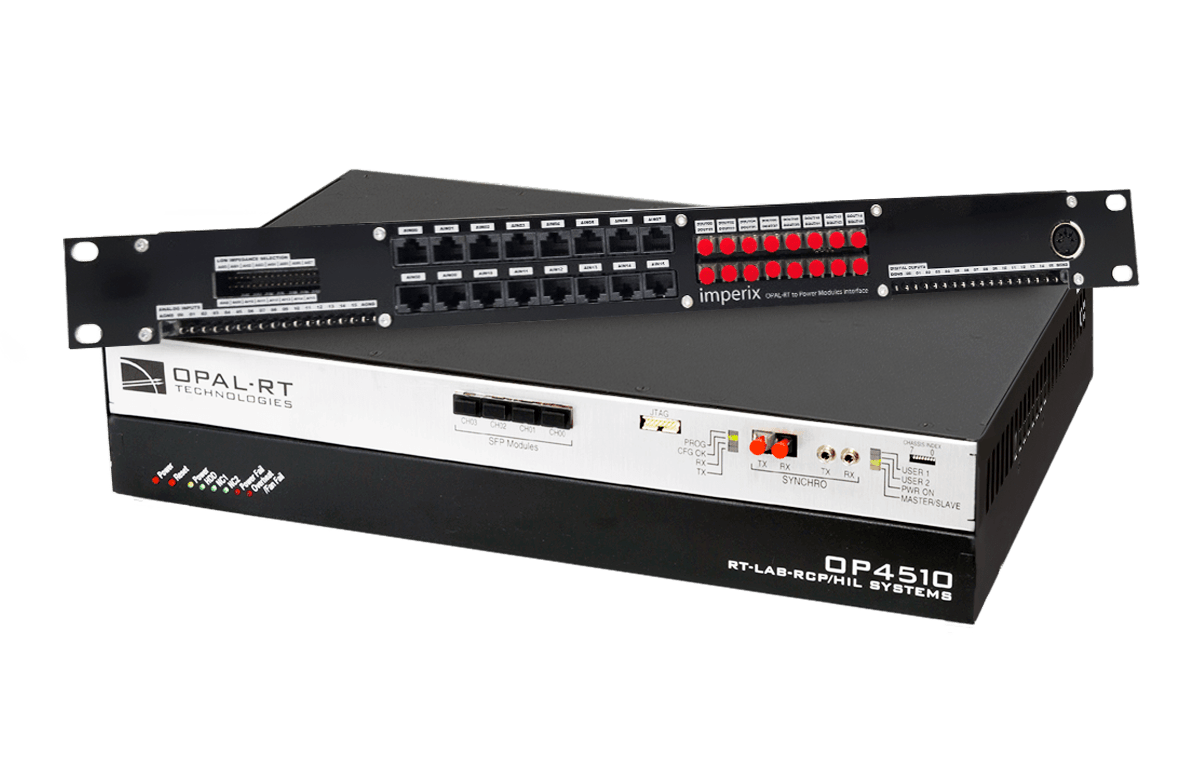

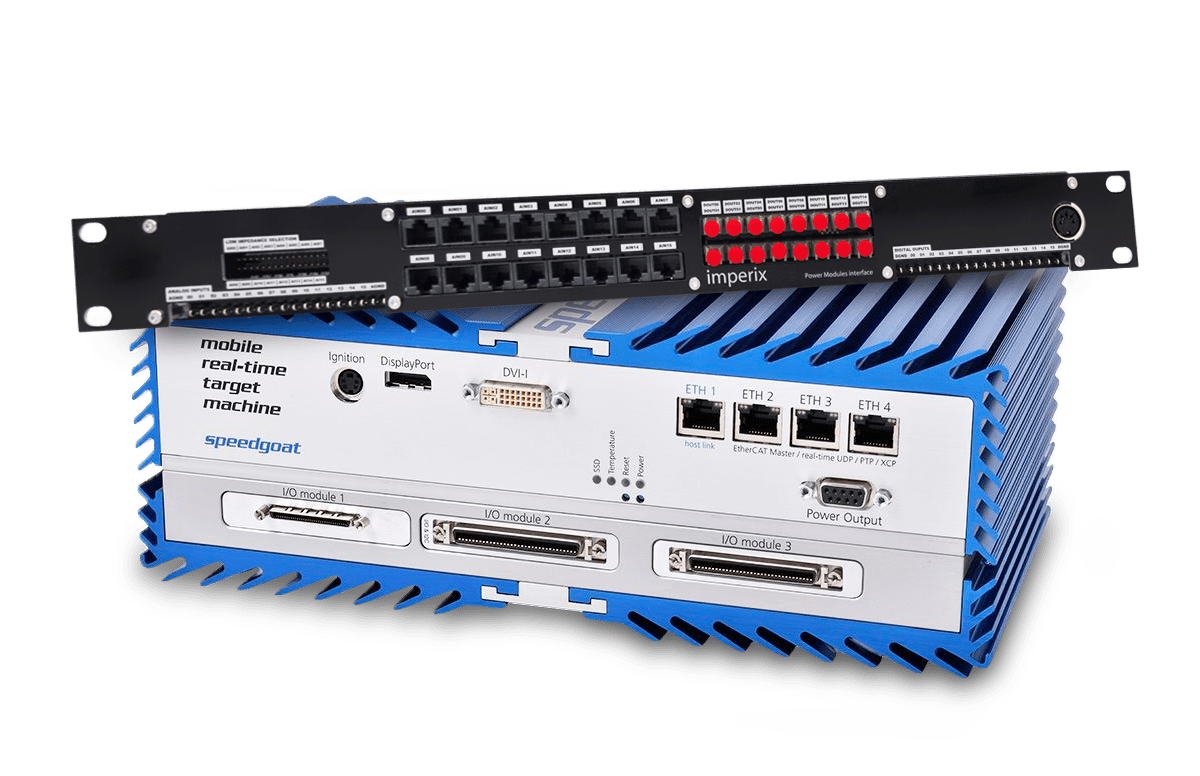

The power interface interconnects a third-party HIL simulator to imperix power modules.

This interface allows controlling imperix power modules from a real-time simulator. It provides the necessary signal connections to easily wire the digital outputs of the HIL simulator hardware to the command inputs of the power modules, and retrieve any useful measurement to its analog inputs.

The black interface hence differs from the white one in the sense that the HIL power interface is here directly connected to the power stage.

Controller simulator

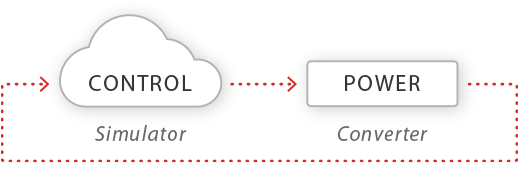

Real-time simulators can obviously not only be used to emulate power circuits but control systems too! As such, owners of a HIL simulator can easily implement power hardware in the loop (PHIL) systems by only adding power modules to their existing equipment.

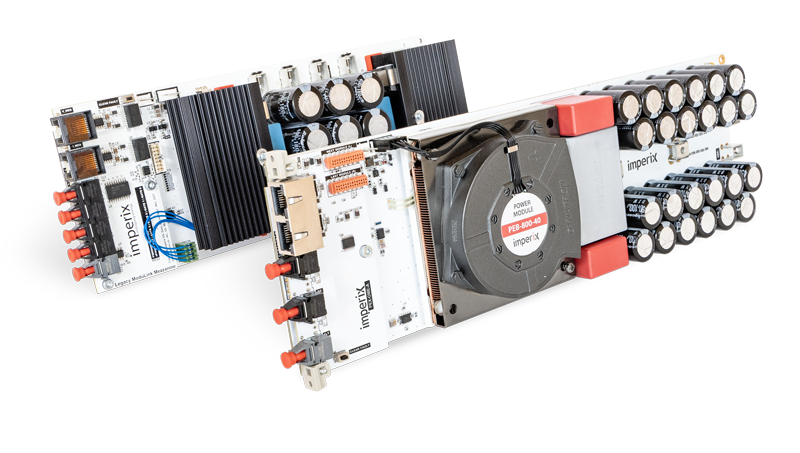

Imperix power modules

Our power electronic building blocks allow building real laboratory-scale power converters in a modular fashion. As such, they can easily be involved in various sorts of experimental activities, including PHIL simulation (Power Hardware-in-the-Loop).

Interfaces for imperix modules

For Opal-RT
your price

your price

your price

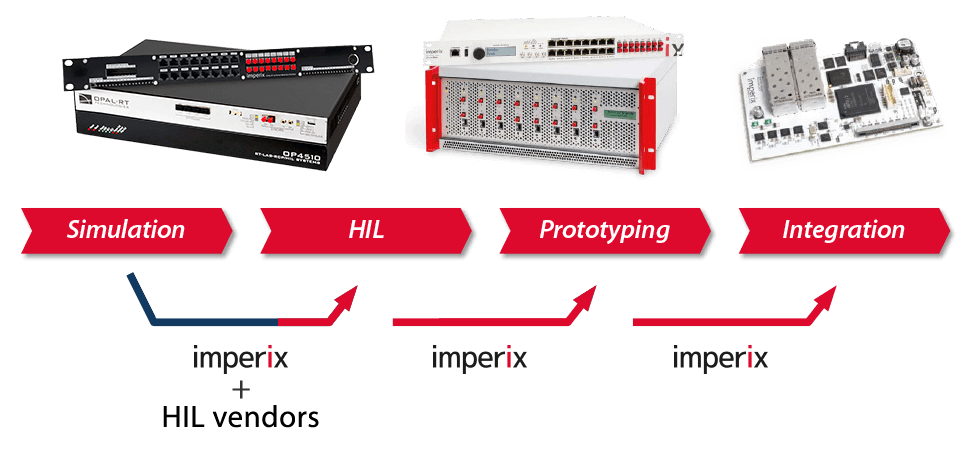

Tools for the complete product development cycle

Comprehensive solutions

From imagination to real-time

With the help of third-party HIL vendors, imperix can assist R&D engineers in their efforts to implement HIL and PHIL simulations. What’s more, this can be done – from the start! – with the exact same software and tools as the final product, hence guaranteeing a consistent development environment!

From real-time to real power!

Then, imperix offers ready-to-use prototyping equipment, thereby facilitating and accelerating the experimental testing, again, with the same control hardware and software. Finally, our product-embeddable controller guarantees a seamless integration into the final product.

Imperix engineering services for HIL-based rapid control development and testing.
