Full bridge module

PEH2015

IGBT-based power module

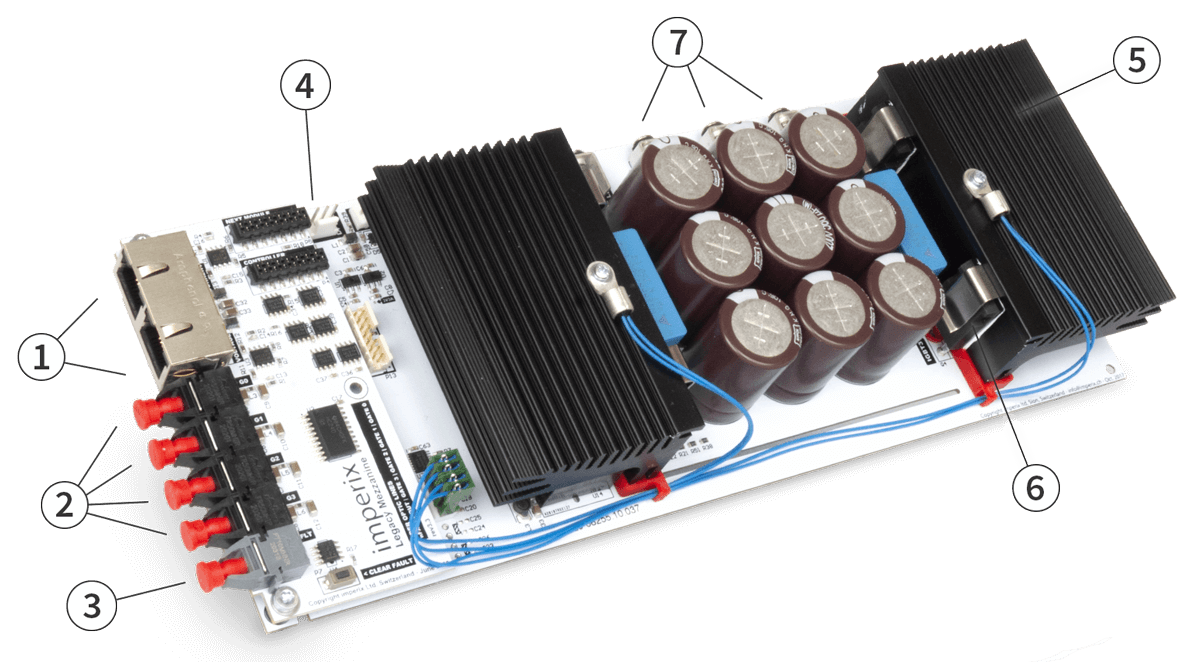

Full bridge submodule made for multilevel converters

  • – Sensors output (analog)
  • – Gate drivers inputs (optical)
  • – Internal fault flag (optical)
  • – Power supply (5V)
  • – Heatsink (2 x 10W)
  • – 4 x Power switches (IGBT)
  • – DC and AC power terminals

Laboratory module for academic research

PEH full bridge modules are ideal for laboratory applications and the implementation of downscaled converters, such as low-voltage Modular Multilevel Converters and similar topologies. Their power ratings are indeed sufficient for most applications, while their ease of use greatly accelerates the experimental validation of converter control techniques.

Each module possesses a complete IGBT H-bridge (two IGBT phase-legs) with 600V semiconductors. TIt also embeds the corresponding gate drive as well as measurement and protection circuits.

200V/15A full bridge module
DC voltage200V
Output current15A
TopologyH-bridge
SemiconductorsSilicon IGBTs
Typical power100-300 W

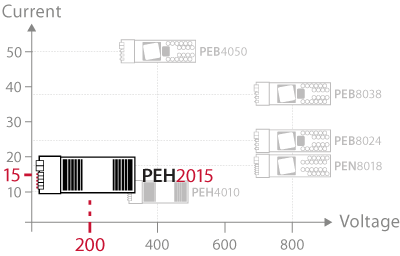

Product positioning of the PEH2015 versus other imperix power modules.
your price


Alternative parts


Integration options

Submodule description

Embedded functions and features

PEH full-bridge modules are truly ready-to-use power electronic building blocks. They embed the following features:

  • IGBT full-bridge / H-bridge (two independent phase-legs)
  • DC bus capacitors (200V)
  • Current and voltage sensors
  • Integrated gate drivers
  • Onboard logic and protections (voltage, current, temperature)
  • Passive heat sink (2x 10W TDP)

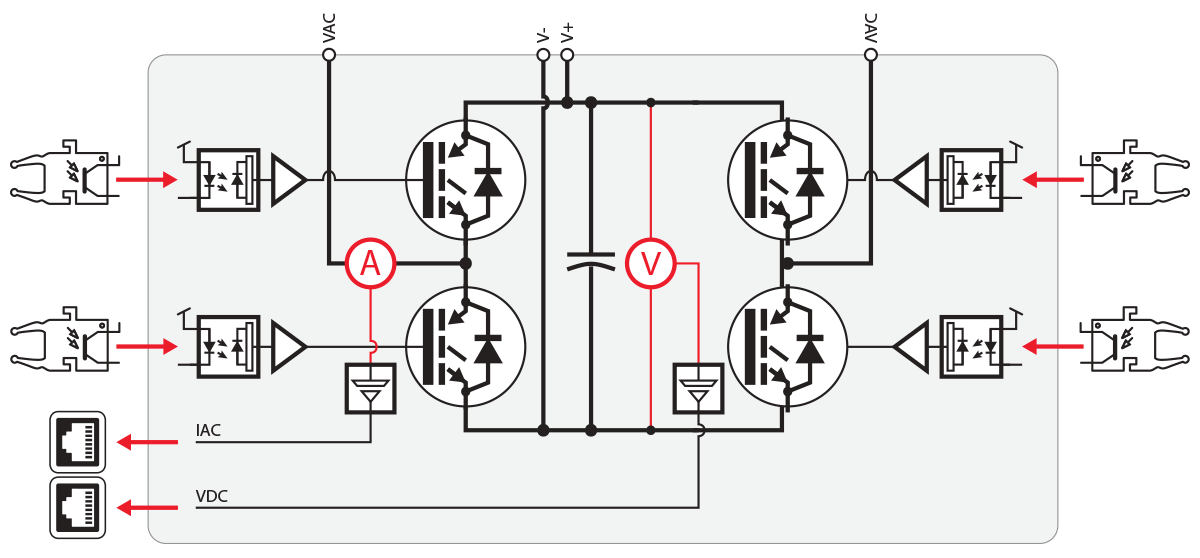

Electrical schematic of the PEH2015 full-bridge module
protection

Designed for research applications

Onboard protection mechanisms

As with all imperix power modules, PEH2015 full-bridge submodules embed protection mechanisms such as over-current/voltage detection, which block both IGBT phase-legs in case of hazardous behavior and thus ensure that its capabilities are never exceeded.

Combined with the additional adjustable protections of our programmable controller, imperix power modules are the ultimate solution for safe and efficient power electronic prototyping in both teaching and research applications.

System-level integration

A modular approach for building multilevel converter prototypes

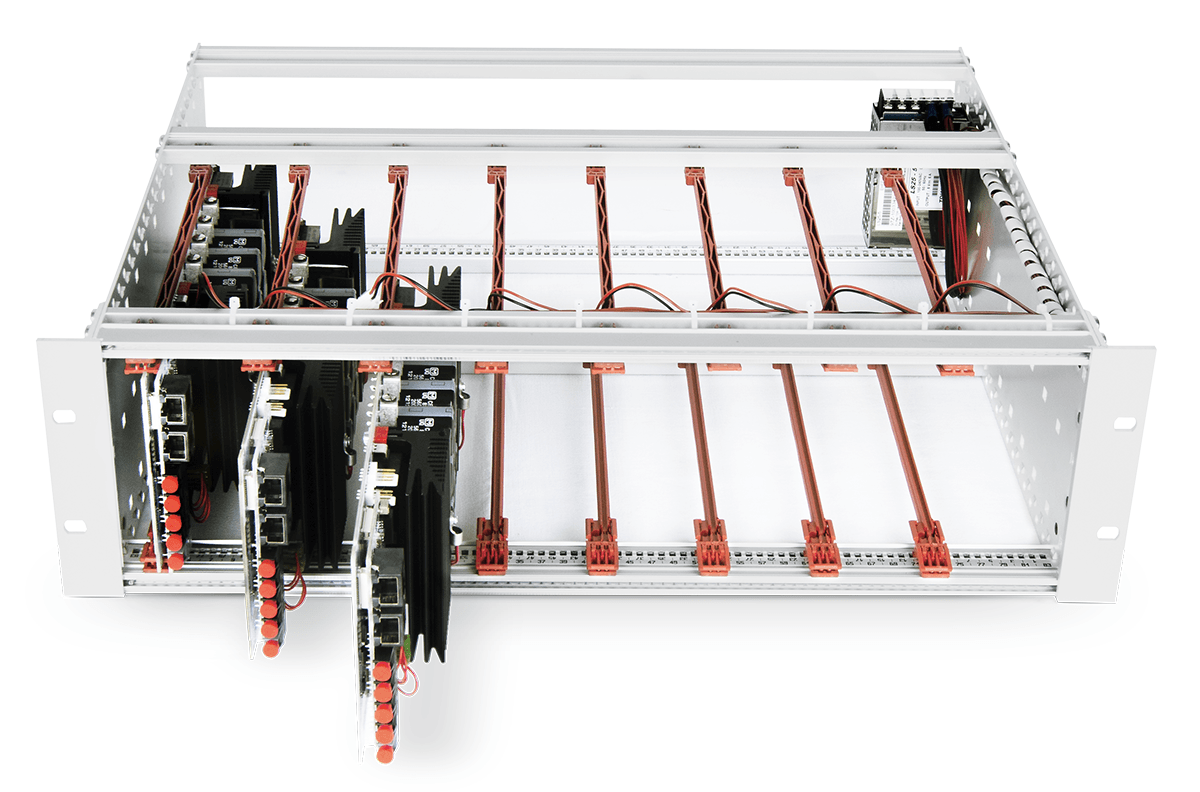

19'' rack-mountable frame with three PEH2015 power modules.
PEH full bridge power modules can be easily assembled within racks to form various power converter topologies. While their reduced DC voltage ratings do not allow for use as grid-connected inverters, they are well suited for use within multilevel power converters, such as Modular Multilevel Converters and similar topologies.

Typical parameters for full bridge operation

  • Switching frequency: 1-20kHz
  • Power rating (single-phase configuration): max. 400W
Scientific research example

Modular Multilevel Converters

PEH2015 power modules can be used either as full-bridge or half-bridge submodules for Modular Multilevel Converter cells. Indeed, they can be easily inter-connected to form cascaded multilevel converters.

Typically, four MMC submodules per arm are sufficient to provide a total DC bus voltage of up to 800V, which is sufficient for grid-connected experimentation at 230/400VAC.



Low-voltage MMC parameters

  • Switching frequency: 1-20kHz
  • Power rating (single-phase configuration): max. 4-6kW
  • Number of levels: up to 17 (L-to-L)
Three-phase MMC inverter
Schematic of a three-phase Modular Multilevel Converter with 24 PEH2015 submodules.
  • 3x controller units
  • 24x MMC submodules
3x B-Box RCP
(centralized controller)

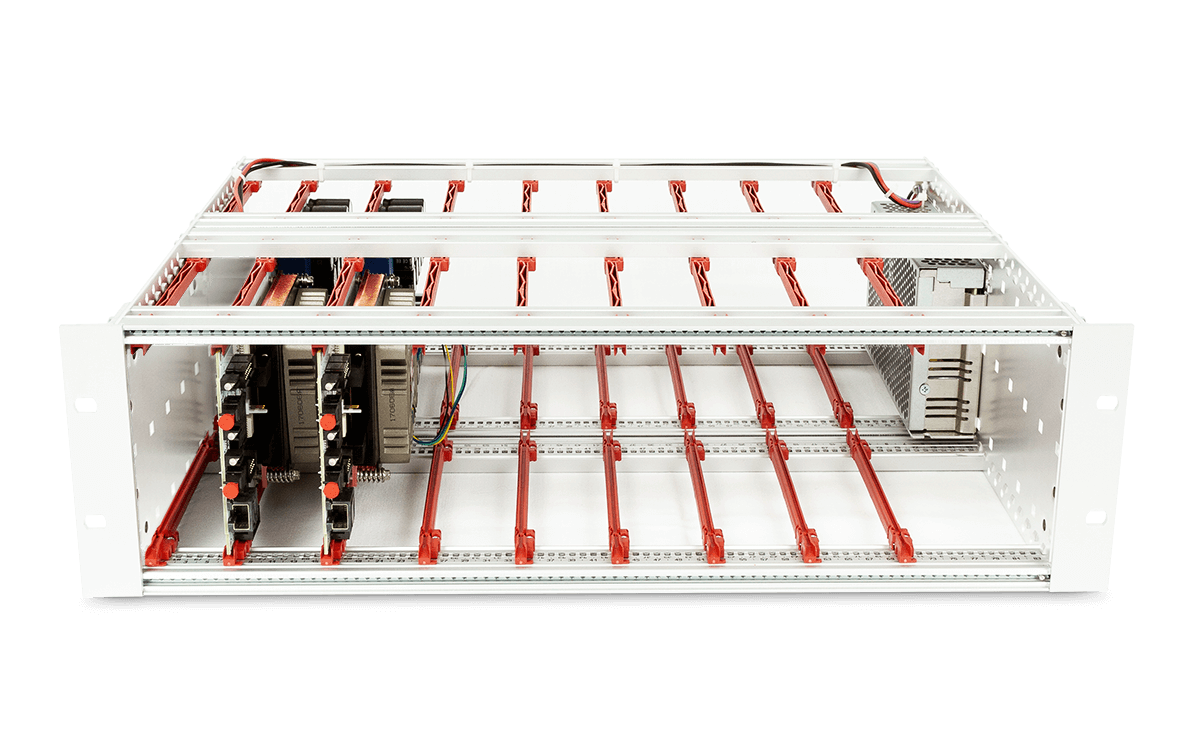

Rack-mounting frames for PEH submodules.

3x 19” open frames
(one chassis per phase)

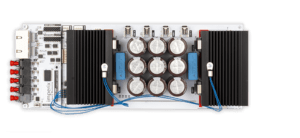

Several full bridge submodules.

24x PEH2015 power modules (MMC submodules)

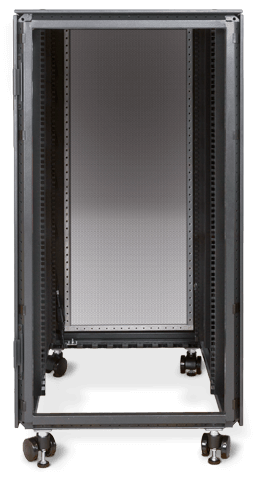

1x 19” cabinet

Teaching example

Reconfigurable power converters

Low-voltage power modules can also be used to demonstrate the operation of all sorts of power converters, ranging from simple full bridge configuration to all sorts of multi-phase or interleaved systems, up to medium-frequency converters or even multilevel applications.

Full-bridge inverter topology with one PEH2015 power module.

Configurable AC sourceSingle-phase, full-bridge inverter, using:

  • 1x digital controller (e.g. B-Box RCP)
  • 1x full bridge module
Isolated resonant LLC converter with two PEH modules.

LLC converter demonstratorIsolated resonant DC/DC converter, using:

  • 1x digital controller (e.g. B-Box Micro)
  • 2x PEH (or 1x PEH + diode rectifier)
Cascaded H-bridges converter with several PEH modules.

Multilevel STATCOM showcase 3-phase cascaded H-bridges converter, using:

  • 2x B-Box RCP
  • 6x full bridge cells

A submodule with multiple facets

Key benefits for laboratory research

Our low-voltage full bridge modules offer lower power ratings than their half-bridge counterparts. They nevertheless offer the same technical capabilities, protections and onboard features. As such, they are ideal when a large number of identical modules is required.

Plug-and-play

PEH submodules contain everything needed to start working right away. Besides, when combined with a B-Box controller, they form a truly plug-and-play solution.

(Re)configurable

The two IGBT half-bridges can be used either as one full bridge or as two independent phase-legs. This offers maximum flexibility for reusing the same submodules across different projects.

Scalable

With their reduced ratings, the PEH submodules are well suited for multilevel converters. Their volume pricing also allows their use in scalable systems with numerous modules.

Student-proof

Thanks to onboard protections, inexperienced engineers can work safely, without damaging the modules. When using a B-Box controller, protection thresholds can even be programmable.
