The passives rack is perfect for back-to-back configurations, but can also be very easily reused for other applications, thanks to its independent accesses to the inductors.
PASSIVE FILTERS
READY-TO-USE FILTERS FOR VARIOUS APPLICATIONS

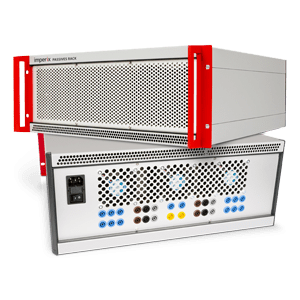

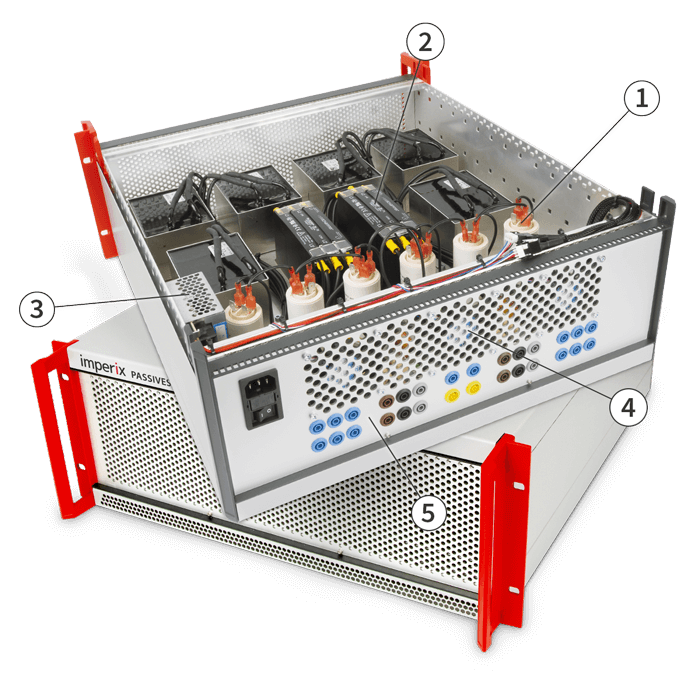

Imperix’s passives rack provides easy-to-use and configurable filters for two sets of three-phase connections. It contains:
- – Three-phase LC-type filter (2x)
- – Three-phase EMC filter (2x)
- – Power supply
- – 3 fan cooling
- – 4mm laboratory banana plugs

TYPICAL USE CASE
The passives rack is ideal for grid-tied appliances. Indeed, it embeds inductors, as well as differential-mode and common-mode filters for an easy (and possibly direct!) connection to the 110V or 230V AC grid.

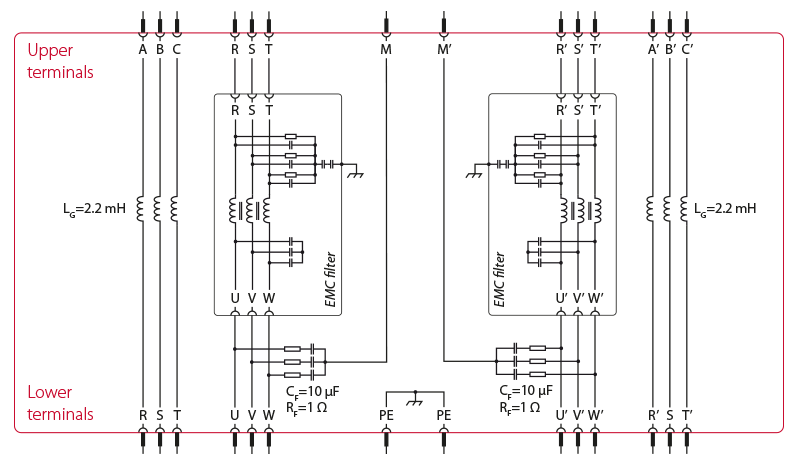

CONFIGURABLE SYSTEM
The passives rack is easily configurable. Indeed, with the help of only a few laboratory cables, electrical connections are straightforward to arrange for various applications. Notably, inductors and filters can easily be re-used in DC or single-phase applications.
APPLICATION EXAMPLE

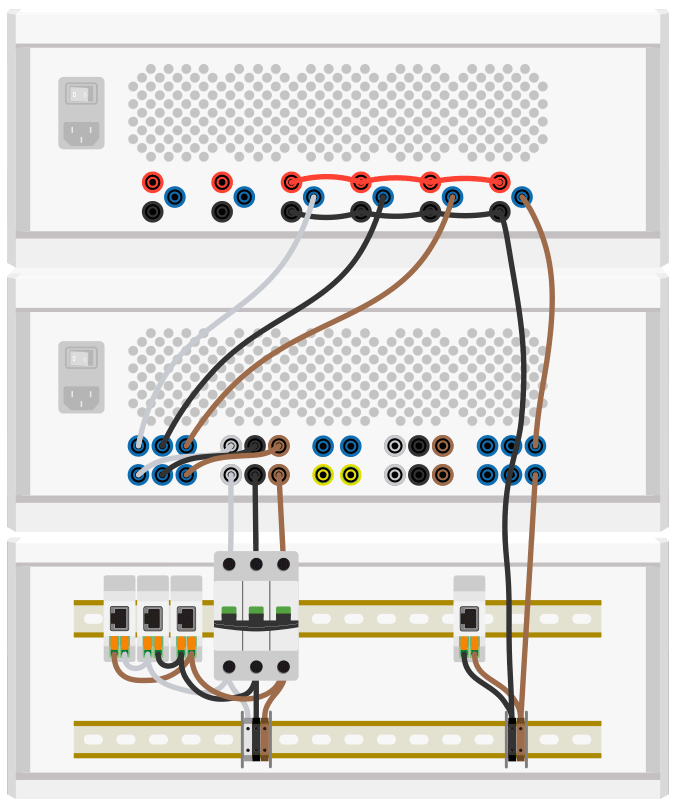

Grid-tied central inverter for photovoltaic applications

In this example, the left-hand side of the passives rack is used for the three-phase side of the converter, and uses both inductors and the filter section. On the DC side, only the inductor is used, although the common-mode filter may be used as well, depending on the ground scenario.
