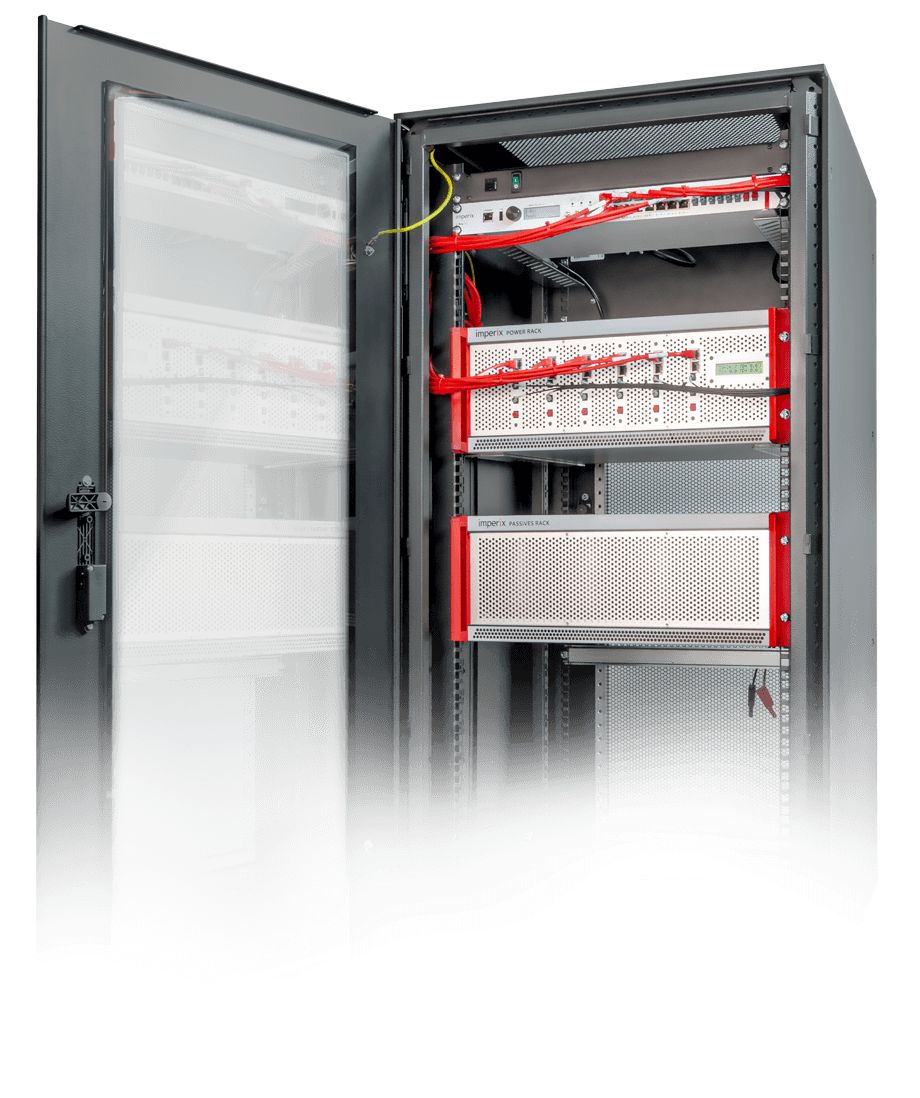

Overall view of the microgrid test bench, including Opal-RT real-time simulator.

Bundle content

1x digital controller
6x power modules
1x passive filters box
1x Grid-side panel
6x voltage sensors
4x current sensors
RJ45 and fiber cables
Software tools for Simulink and PLECS

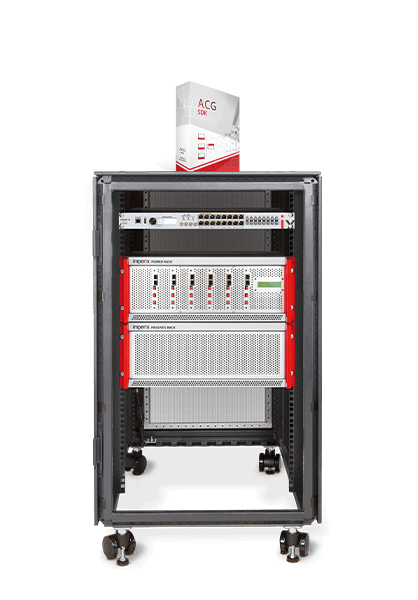

power electronics test bench

Turnkey test bench for power electronics

The power electronics bundle is a flexible, general-purpose, power electronics bench. It includes a programmable controller and a selection of power modules, LC filters, and sensors. The power modules can be easily rewired to implement a multitude of power converters, ranging from two 3-phase inverters in a back-to-back setup to a dual-active bridge cascaded with an active front end.

	your price
Quantity

The ideal solution for power electronics prototyping

Built using imperix’s modular approach, the power electronics test bench can be adapted to, and even scaled up to, numerous topologies and scenarios.

In today’s dynamic landscape, R&D needs and goals are constantly changing. The toolless system allows for quick and easy reconfiguration, keeping the focus on the research.

Safe and integrated

With the integration of the power modules into the closed rack and 19” cabinet, the entire system is designed with safety and ease of use in mind. The standard banana connectors allow for the system to remain safe, with no exposed conductors, even when configurability needs to be prioritized.

Fully programmable

The bundled B-Box RCP is imperix’s flagship controller. It allows for the implementation of advanced control techniques on both its DSP and FPGA. The ACG SDK ensures a seamless transition from simulation to physical implementation, keeping the focus on the control algorithm

All-in-one

With an integrated grid connection panel taking care of power module precharge, and a configurable set of filter components, the power electronics test bench is a jack-of-all-trades that provides everything needed for a multitude of DC or AC applications.

user-friendly

The ease of use of the system, alongside the freely accessible documentation and examples, means that the power electronics test bench is perfectly suited for rapid control prototyping. A complete system can go from concept to physically implemented in as little as 3 hours.

Hover to find out more.

Power electronics test bench operation

Four steps to successful converter control testing

The path from imagination to a working real power system can be drastically shortened, thanks to the combination of:

ready-to-implement examples on the knowledge base and the streamlined control design process
user-friendly design with plug & play power modules, ensuring the power electronics test bench remains flexible and easy to (re)wire

Computer simulation of power electronic system.

Start from the knowledge base

The imperix knowledge base provides a collection of free and pre-tested models to jumpstart laboratory implementation.

Inverter model for microgrid control testing.

Simulate offline

Imagine and develop the control in Matlab Simulink. Accurate offline simulations enable pre-validation of the implemented control algorithm.

Zoom on the digital controller inside the microgrid test bench.

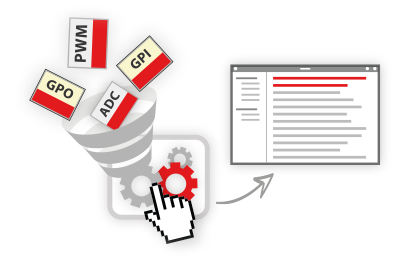

Generate run-time code in one click

Transition from an offline simulation to testing with hardware in 1 click by generating runtime code with ACG SDK.

Validate in the lab

Monitor and tune your converter in real-time thanks to imperix Cockpit and derive high-quality experimental results in no time.

Examples using default configuration

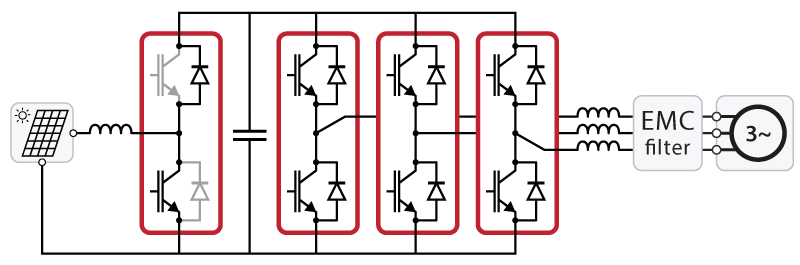

Three-phase photovoltaic inverter

Work with a simulated panel to control irradiance conditions!

Work with a real PV panel and improve the realism of your setup!

More details, including code examples, can be found on our knowledge base.

KNOWLEDGE BASE - AN006

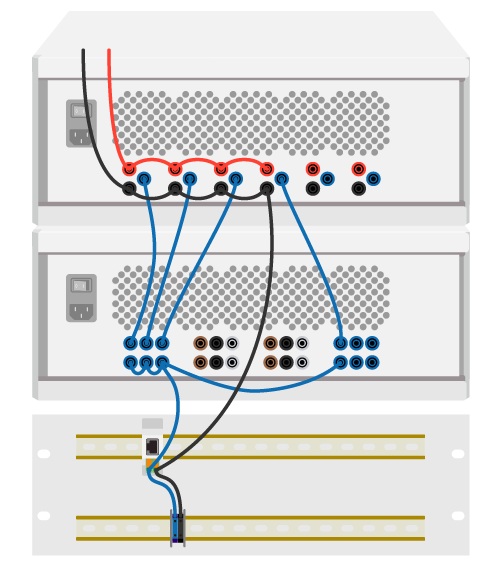

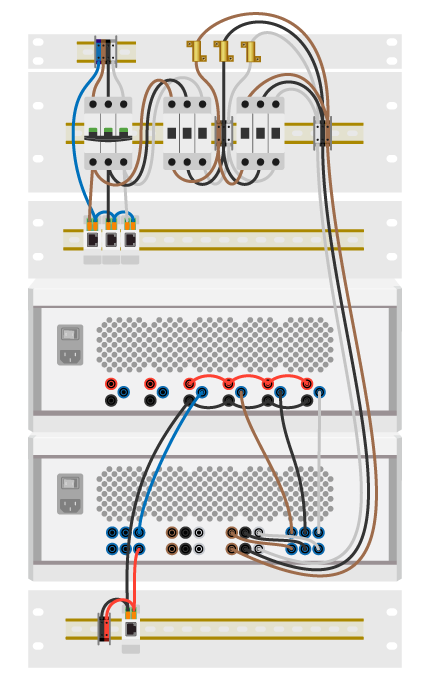

Wiring example of the microgrid test bench for PV emulator.

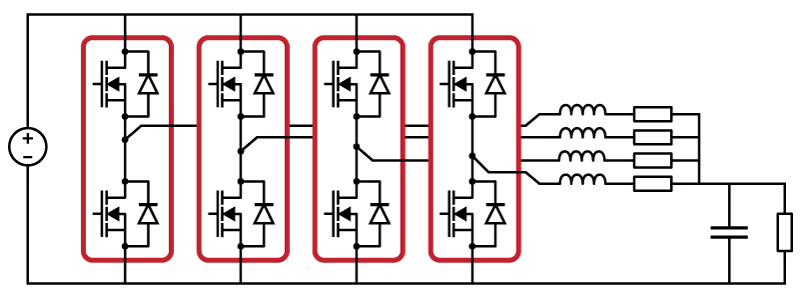

Multiphase power converters

Push towards higher current applications by interleaving power modules

Scale up your laboratory prototype to better match real-world conditions

More details, including code examples, can be found on our knowledge base.

KNOWLEDGE BASE - TN122

Examples using customized configuration

The exact configuration of the power electronics test bench can be customized upon specific project requirements.

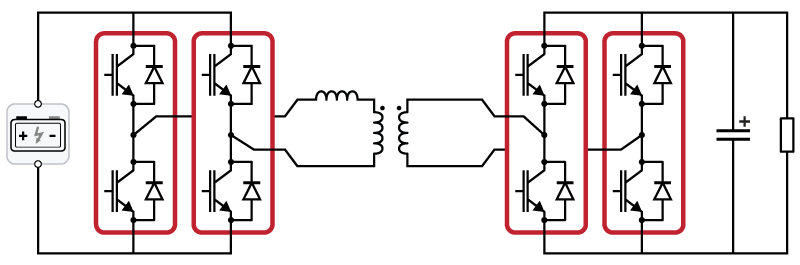

Dual active Bridge converter

The power electronics test bench’s 19″ cabinet provides enough room to extend its capabilities with the addition of external elements, such as a high-frequency transformer.

Easily form an isolated converter by integrating a high-frequency transformer

Build DAB, LLC topologies, and more for various applications from V2G to fuel cell converters.

More details, including code examples, can be found on our knowledge base.

KNOWLEDGE BASE - TN115

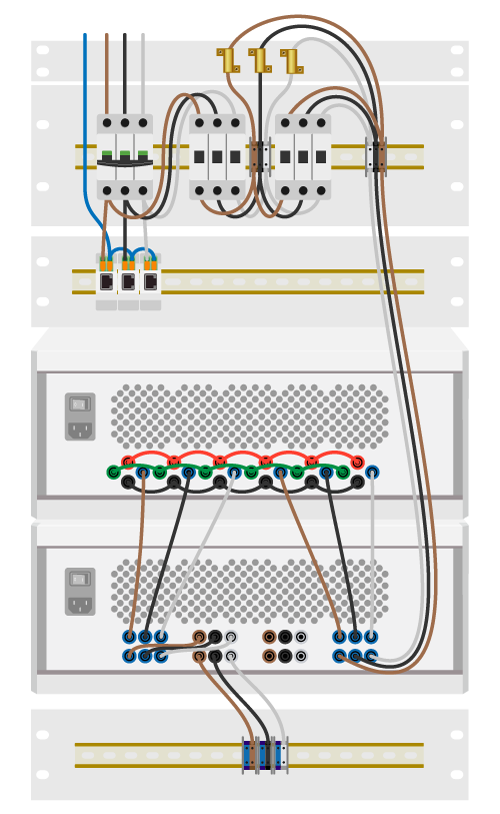

Back-to-back grid-connected converters

The modular nature of imperix solutions means that the power electronics test bench can be augmented by switching out the modules with ones better suited to a given application. The example below replaces the PEB 8038 modules with PEN 8018 modules.

Expand your laboratory-scale microgrid with the inclusion of an emulated HVDC link

Configure the power electronics test bench as a VFD controllable to the PWM level

More details, including code examples, can be found on our knowledge base.

KNOWLEDGE BASE - AN005

BROWSE OUR KNOWLEDGE BASE

The imperix knowledge base contains a continuously growing list of references, including application examples, ready-to-use control software files, technical notes, as well as specific tutorials. By browsing the knowledge base, research engineers are never short of help when working with the power electronics test bench.

DISCOVER MORE EXAMPLES
