DIN50A - ±50 A DIN rail-mountable current sensor

The DIN50A block is a simulation model included in the Imperix Power library. It implements the model of the imperix ±50 A DIN rail-mountable current sensor in Simulink and PLECS simulation.

For more information regarding the Imperix Power library, please read Getting started with Imperix Power library.

Modeling of DIN50A

The DIN50A model has two modeling levels:

• (A) Simple
• (B) Detailed

A generic sensor can be approximately modeled by an ideal sensor in series with an optional first-order Low-Pass Filter (LPF). The relationship between sensor’s bandwidth \(f_{BW}\) and the time constant \(\tau\) of the LPF follows \(\tau = \frac{1}{2\pi f_{BW}}\).

A sensor is modeled as a first-order LPF only if its bandwidth lies within the frequency range of a given modeling level. Otherwise, it is modeled as an ideal sensor. The following table summarizes the information on the DIN50A voltage sensor.

Simulink DIN50A block

Port specification

• The output i is the measured current through the two electrical ports.

Parameters

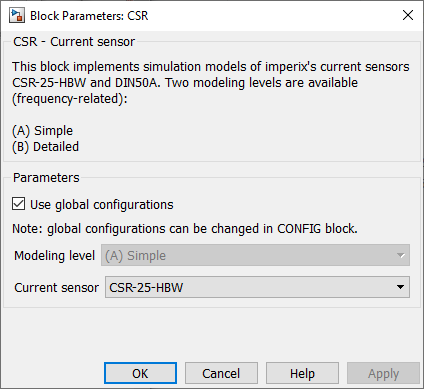

• Use global configurations is ticked when the block receives global configurations from the Config block.
• Modeling level selects the modeling level of the current sensor.

PLECS DIN50A block

Port specification

• The output i is the measured current through the two electrical ports.

Parameters

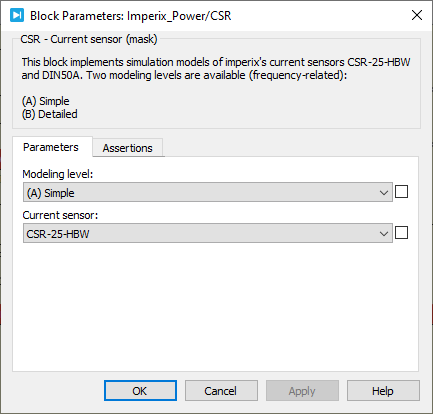

• Modeling level selects the modeling level of the current sensor.

Probe signals

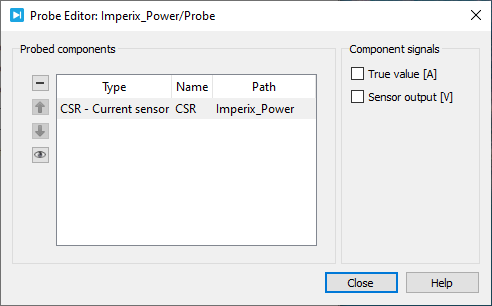

The following signals can be monitored by a Probe block in PLECS.

• True value [A] monitors the true value of the measured current through the two electrical ports in Volt.
• Sensor output [V] monitors the physical output of the current sensor in Volt.
